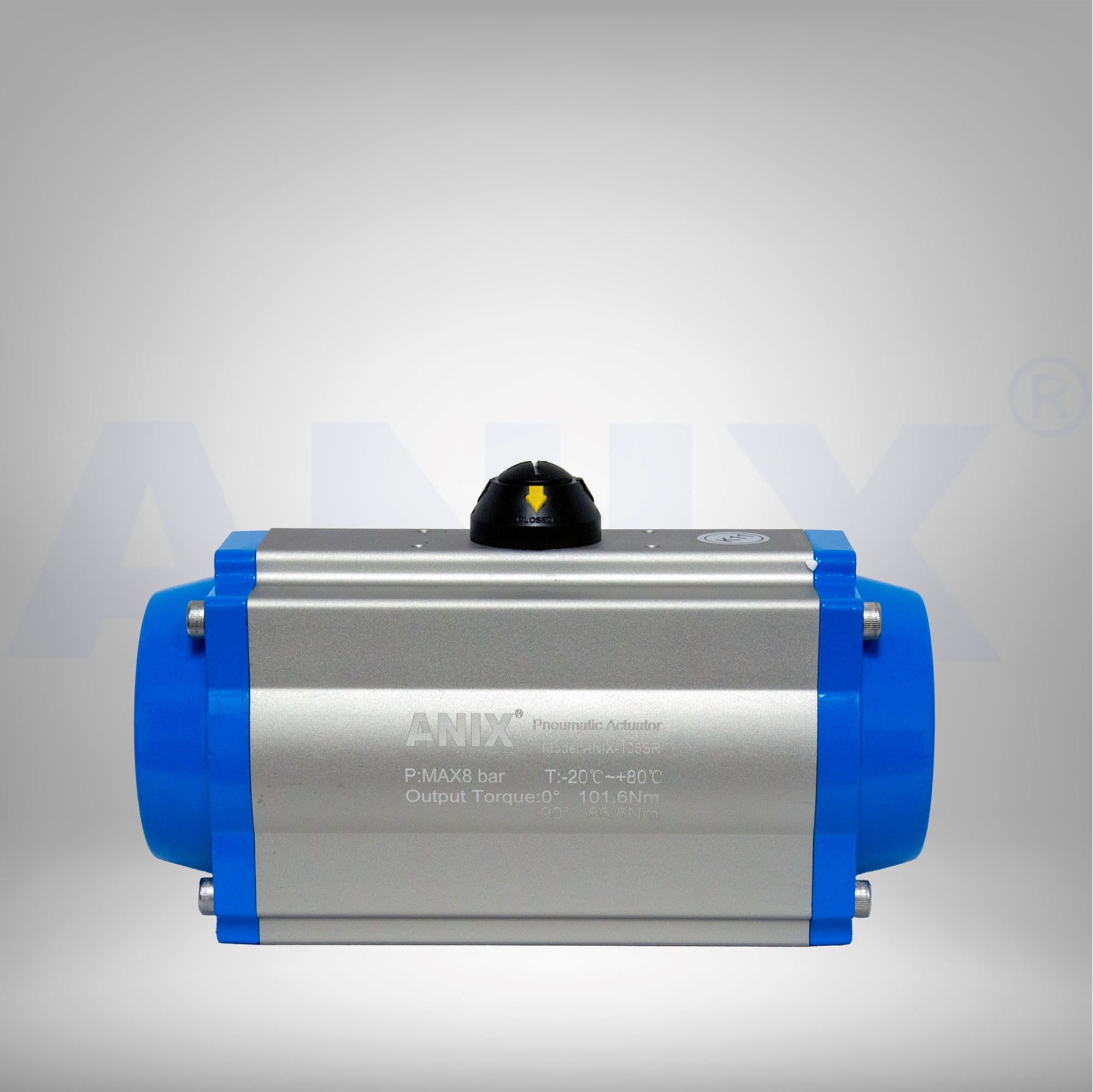

Pneumatic Actuator - Double Acting / Spring Return

  • Pneumatic Actuators
  • • Durable aluminum alloy construction with hard-anodized surface
  • • Versatile for both indoor and outdoor environments
  • • Compliant with NAMUR and ISO standards for easy integration with solenoid valves, limit switches, and positioners
  • • Available in double-acting and spring-return options
  • • Wide operating temperature range: -40ºC to +160ºC
  • Features
  • • Easy to install and maintain
  • • Efficient for a wide range of applications in industrial environments
  • • Suitable for integration with automated systems
  • • High reliability and long operational life
  • • Available in a variety of sizes and configurations
ANIX Part Number: Model AN-DA/SR
Manufacturer: ANIX VALVE

ANIX Valve USA offers high-quality pneumatic actuators designed for various industrial applications. These actuators are commonly used in industries such as Oil & Gas, Petrochemical, Food & Beverage, Pharmaceuticals, Agriculture, Power Generation, and more. They meet international technical standards and are built for both reliability and performance. These devices play a crucial role in industrial automation, facilitating the automation of processes through the actuation of valves in demanding environments.

Key Features

  • Materials and Design:
    • Extruded high-quality aluminum alloy with a hard-anodized outer surface for enhanced durability.
    • Dual-piston rack and pinion with symmetric structure for fast, smooth action and high output power.
    • Advanced materials and processes ensure reliability and consistent performance.
  • Versatile Applications:
    • Compatible with NAMUR standards for easy installation of solenoid valves, limit switches, and positioners.
    • ISO5211 and DIN 3337 compliant bottom mounting connection for compatibility with valve gearboxes and mounting brackets.
    • Suitable for both indoor and outdoor environments.
  • Adjustability:
    • Travel adjustment available with a ±5º range for rotation at 0º and 90º.
    • Adjustable on/off positions with external adjusting screws.
    • Easily convertible between double-acting and spring-return operation modes by adding or removing springs.
  • Performance:
    • Available in both double-acting and spring-return models, with high output torque.
    • Operates with air supply pressures ranging from 2 Bar to 8 Bar, suitable for various applications.
    • Operates with dry or lubricated air, or non-corrosive gases with a maximum particle diameter of 30 microns.
  • Safety and Ease of Use:
    • Modular preloaded safety spring cartridges for safe spring installation/removal.
    • Multi-positioner and visual indicator comply with VID/VIE 3845 and NAMUR standards.
  • Torque and Air Supply:
    • Torque output depends on the air supply pressure (2 Bar to 8 Bar), with varying models (AN-052 to AN-160).
  • Operational Mode:
    • Double-acting actuators provide full rotational power in both directions.
    • Spring-return actuators use a spring mechanism to return to the default position.
  • Modular Design:
    • Modular design allows for easy modifications, including switching between single-acting and double-acting modes.

Applications

  • Oil & Gas
  • Petrochemical
  • Chemicals
  • Food & Beverage
  • Water & Wastewater Treatment
  • Power Generation
  • Mining and Mineral Processing
  • Semiconductors
  • Agriculture

Standards Compliance

The actuators comply with NAMUR standards, making them ideal for the installation of solenoid valves and accessories. They also meet international specifications, ensuring they are suitable for both current and future industry requirements.

Additional Information

The actuators are designed to handle non-corrosive gases and can be used in a variety of environmental conditions. Their modular design, high torque output, and ease of installation make them a cost-effective choice for many industries.
