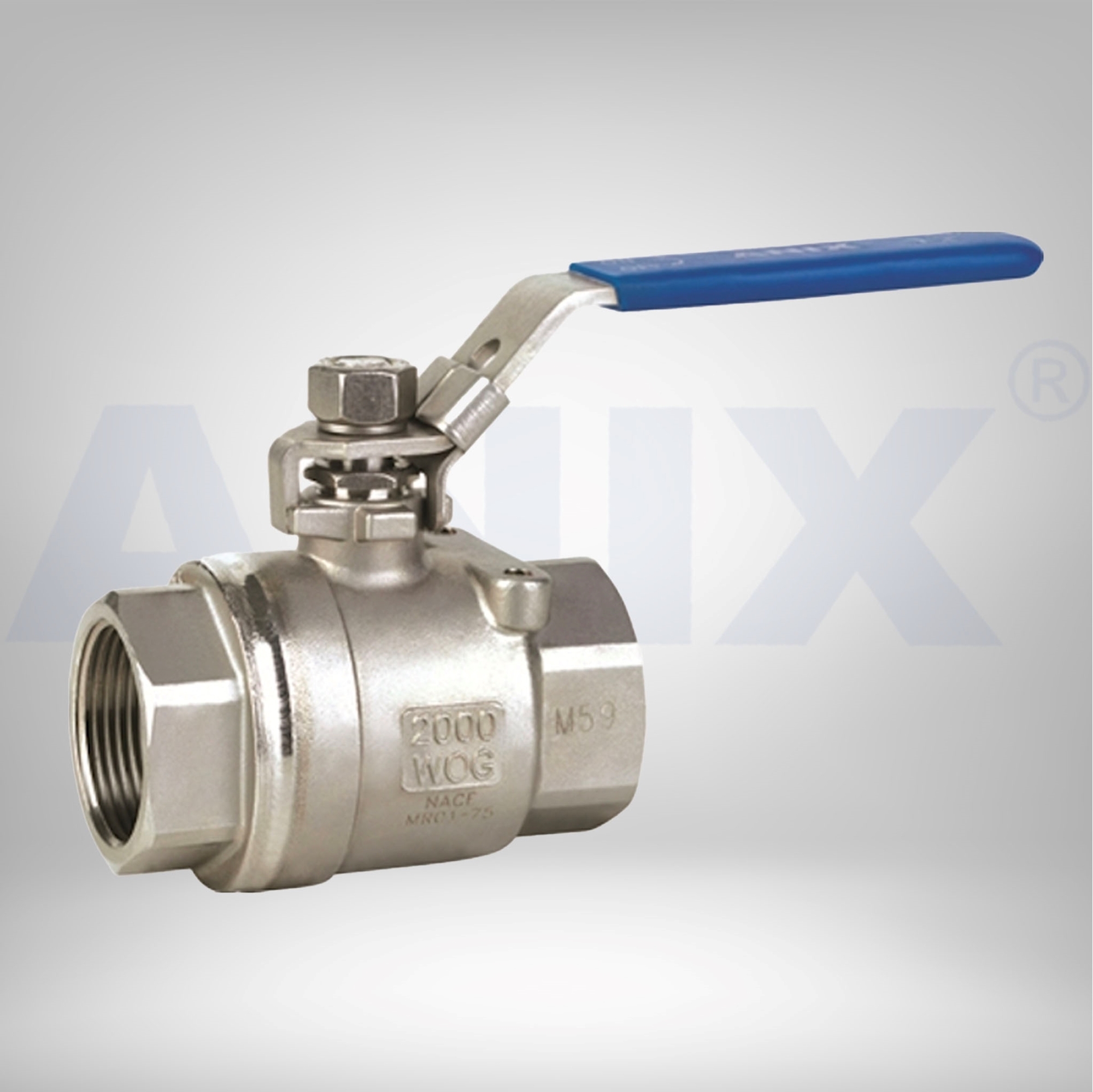

ANIX Stainless Steel 2-Piece Full Port Ball Valve 1000 / 2000 WOG Threaded NPT

2-Piece Full Port Ball Valve

Available in 1000 or 2000 WOG
Size: 1/4" to 4"



  • - Investment Casting Stainless Steel with Full Port Body.
  • - NPT Threaded End Connection (ANSI B1.20).
  • - Lockable Handle.
  • - Blow-Out-Proof Stem Design.
  • - Available in PTFE, R-PTFE seat material.
  • - High-Temp PTFE seat materials can be made available
  • - Working Pressure of 1000 Psi for BV12-6N/1000.
  • - Working Pressure of 2000 Psi for BV12-6N/2000.
  • - For Water, Oil, or Gas Medium Application
  • - Design fully complies with ASME B16.34.
  • - Tested in accordance to API 598.



Manufacturer part number: BV12-6N/X000 Series

2PC Ball Valve 1000 WOG

Download BV12F6N/1000 2PC Ball Valve (PTFE ver.) Cut Sheet.

Download BV12R6N/1000 2PC Ball Valve (R-PTFE ver.) Cut Sheet.

Download SS316 2PC Ball Valve 1000WOG Product Literature.



2PC Ball Valve 2000 WOG

Download BV12F6N/2000 2PC Ball Valve (PTFE ver.) Cut Sheet.

Download SS316 2PC Ball Valve 2000WOG Product Literature.

ANIX Stainless Steel SS 2-PCE full Port Ball Valve 1000 or 2000 PSI Threaded NPT



  • - Investment Casting Stainless Steel with Full Port Body.
  • - NPT Threaded End Connection (ANSI B1.20).
  • - Lockable Handle.
  • - Blow-Out-Proof Stem Design.
  • - Available in PTFE, R-PTFE seat material.
  • - High-Temp PTFE seat materials can be made available
  • - Working Pressure of 1000 Psi for BV12-6N/1000.
  • - Working Pressure of 2000 Psi for BV12-6N/2000.
  • - For Water, Oil, or Gas Medium Application
  • - Design fully complies with ASME B16.34.
  • - Tested in accordance to API 598.
