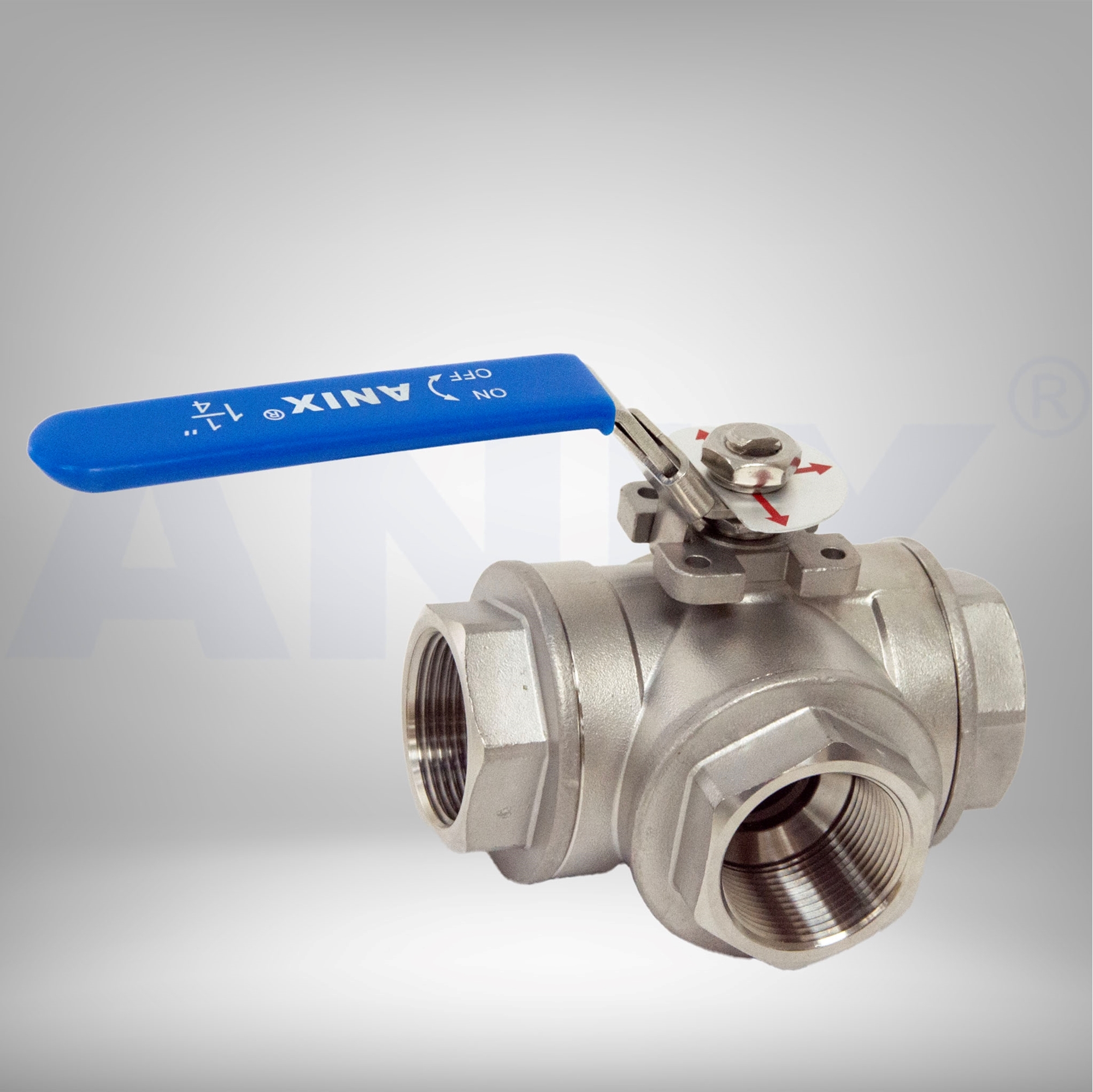

ANIX Stainless Steel 3-Way Ball Valve 1000 WOG Threaded NPT

Three Way L Port / T Port Ball Valve
Sizes: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"



  • - Investment Casting Stainless Steel Material.
  • - L Port or T Port 3-Way Ball Valve.
  • - Also known as T port mixer valve or L port diverter valve.
  • - NPT Threaded End Connection (ANSI B1.20.1).
  • - High / Direct Mounting Pad Design.
  • - Fully Complies with ISO 5211.
  • - Available in Low mounting.
  • - Lockable Handle.
  • - Blow-Out-Proof Stem Design.
  • - Available in PTFE or R-PTFE seat material.
  • - High-Temp PTFE seat materials can be made available.
  • - Working Pressure of 1000 PSI.
  • - Suitable for Water, Oil, or Gas Medium Application.
  • - Design fully complies with ASME B16.34.
  • - Tested in accordance to API 598.
Manufacturer part number: BV(H)1(4/5)F6N/1000 Series

3-Way Ball Valve 1000 WOG (Low Mounted)

Download 3-Way L Port Ball Valve BV14F6N/1000 (PTFE ver.) Cut Sheet.

Download 3-Way L Port Ball Valve BV14R6N/1000 (R-PTFE ver.) Cut Sheet.

Download 3-Way T Port Ball Valve BV15F6N/1000 (PTFE ver.) Cut Sheet.

Download 3-Way T Port Ball Valve BV15R6N/1000 (R-PTFE ver.) Cut Sheet.

Download SS316 3-Way Ball Valve 1000WOG (Low Mounted) Product Literature.



3-Way Ball Valve 1000 WOG (High Mounted)

Download 3-Way L Port Ball Valve BVH14F6N/1000 (PTFE ver.) Cut Sheet.

Download 3-Way T Port Ball Valve BVH15F6N/1000 (PTFE ver.) Cut Sheet.

Download SS316 3-Way Ball Valve 1000WOG (High Mounted) Product Literature.



  • Investment Casting Stainless Steel Material.
  • L Port or T Port 3-Way Ball Valve.
  • Also known as T port mixer valve or L port diverter valve.
  • NPT Threaded End Connection (ANSI B1.20.1).
  • High / Direct Mounting Pad Design.
  • Fully Complies with ISO 5211.
  • Available in Low mounting.
  • Lockable Handle.
  • Blow-Out-Proof Stem Design.
  • Available in PTFE or R-PTFE seat material.
  • High-Temp PTFE seat materials can be made available.
  • Working Pressure of 1000 PSI.
  • For Water, Oil, or Gas Medium Application.
  • Design fully complies with ASME B16.34.9
  • Tested in accordance to API 598.



ANIX 3 way ball valve with Threaded end manufactured and distributed by ANIX Valve USA are made of high quality Stainless Steel CF8M. Flow plan includes T port (Mixer valve) and L Port (Diverted valve) with the options of direct  mounted pad ISO 5211 (High mounted) or Low mounted pad.  The 3-way Ball valve is available in T-Port and L-Port designs completing the range of NPT threaded Reduced Port Stainless-Steel Three-way Ball Valves. The T-Port (Mixing valve) is allowing flow in all 3 ports or it allows Flow in two ports only. Whereas the L-Port (Diverter valve) allows flow in 2 directions in a L pattern. Making this a Specialized stainless steel Ball Valve necessary for anyone who wants to direct Flow in 3 lines. Diverter and directional valves are names commonly used for three-way L-port stainless steel ball valves. Reason being because this valve configuration is most commonly used to divert or change the direction of gas or fluids running through one of two separate outlets or ports. Manual Reduced Port Three-way Stainless-steel L-port ball valves used as directional valves are usually installed to have the bottom port to act as the flow entry port of the valve body. T-port stainless-steel three-way ball valves are also referred to as Mixing valves. Reason being is because this valve configuration is most commonly used to combine fluids or mix fluids coming from two different ports. Manual Reduced Port Three-way Stainless-steel T-port ball valves used as mixing valves are usually installed to have the bottom port to act as the flow entry port of the full port valve body to mix or combine the fluids. Generally, three-way stainless steel L port or T port ball valves are described based on the way the ball valve directs the flow of fluids (Oil, Gas, Water, and petroleum). Depending on how the Three-way stainless-steel ball valve is set up and how the valve ball is drilled, Oil and gas flow can be either mixed (Mixing valve) or diverted (Diverter valve), the three-way ball valve can be either shut off completely or the flow can be blocked in one direction. Three-way stainless-steel ball valves can eliminate the use of an extra ball valve and can also save space. Three-way ball valves also come in high mount or direct mount.
