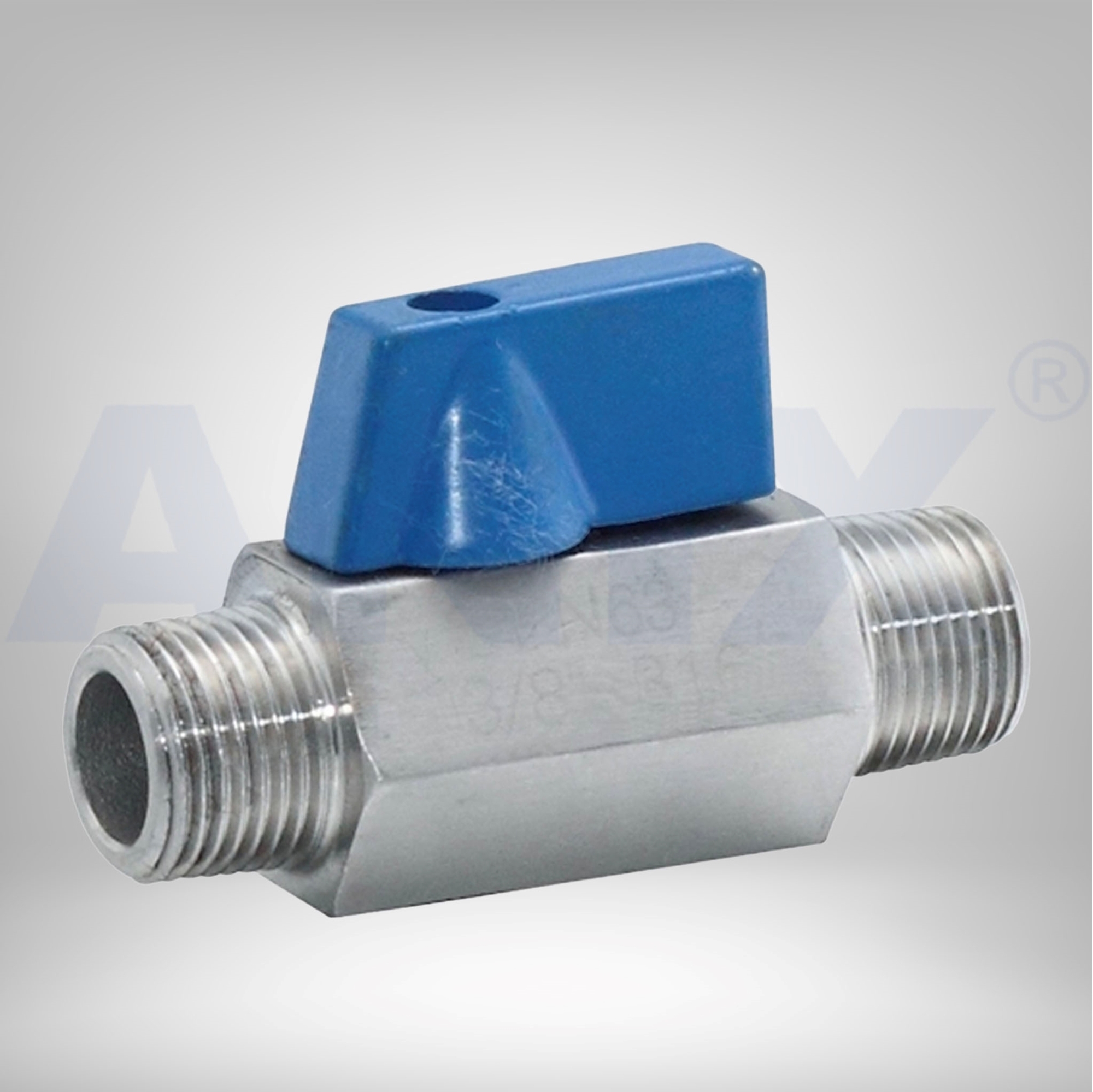

ANIX Stainless Steel Mini Ball Valve 1000# Male x Male Threaded Ends

  • 316 Stainless Steel Mini Ball Valve M x M
  • • Sizes available: 1/4", 3/8", 1/2", 3/4", 1"
  • Features
  • • Investment Casting, Reduced Port Body
  • • Three Variants of Connection Type
  • • NPT Threaded End Connection (ANSI B1.20)
  • • Blow-Out-Proof Stem Design
  • • Available in PTFE or R-PTFE seat materials
  • • Working Pressure of 1000 PSI
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598
  • • Black Handle for 1/4" Mini ball valve available



ANIX Part Number: BV20F6N/1000 Series



Download Mini Reduced Port Ball Valve Product Catalog.

Download Male to Male BV20F6N/1000 Data Sheet.



The ANIX SS 316 Mini Ball Valve Male x Male Threaded NPT is crafted from investment casting stainless steel 316 with a reduced port body, ensuring durability and reliable performance. This valve features a male to male NPT threaded end connection (ANSI B1.20) and includes a blow-out-proof stem design for added safety. It is available with PTFE or R-PTFE seat materials upon request and is designed to handle a working pressure of 1000 psi for water, oil, or gas applications. Fully compliant with ASME B16.34 and rigorously tested according to API 598, this valve guarantees exceptional performance in demanding environments. Available in sizes: 1/4", 3/8", 1/2", 3/4", and 1".



ANIX Stainless Steel Mini Ball Valve manufactured and distributed by ANIX Valve USA are available in 3 type of connections, including male to male (M-M), female to female (F-F), male to female (M-F) made of high quality 316 Stainless steel body material.
