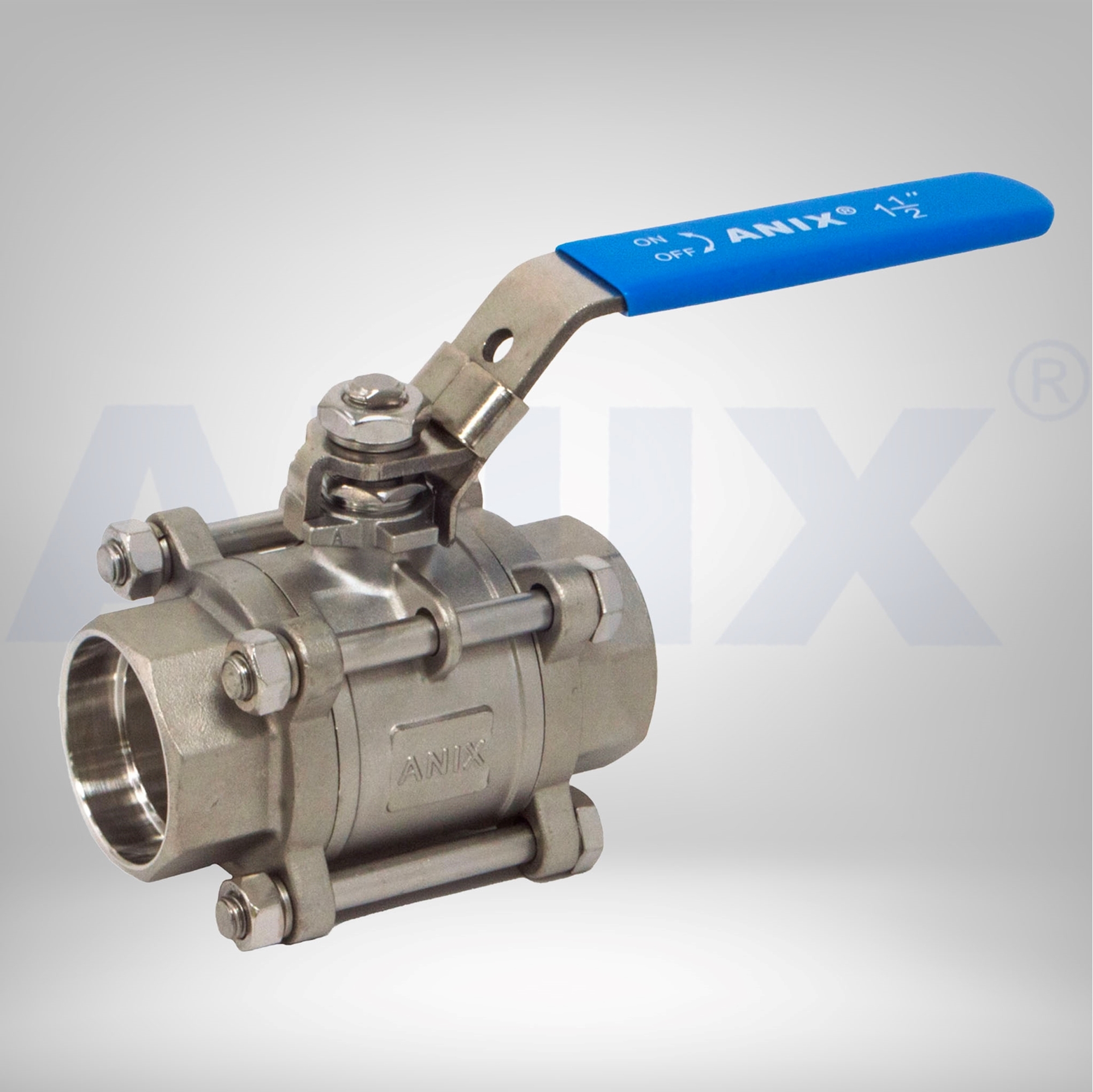

ANIX Stainless Steel Socket Weld End 3-Piece Full Port Ball Valve 1000 WOG

316 Stainless steel Socket Weld Ball Valve
Available in High / Direct Mounted
Size: 1/4" to 4"



  • - S316 SS Socket Weld 3-Piece Ball Valve 1000WOG
  • - Investment Casting Stainless Steel Body
  • - Full Port / Full Bore
  • - Socket Weld End Connection
  • - High / Direct Mounting Pad ISO 5211 compliant
  • - Lockable Handle
  • - Blow-Out-Proof Stem Design
  • - Available in R-PTFE or High-Temp PTFE seat materials
  • - Working Pressure of 1000 Psi
  • - For Water, Oil, or Gas Medium Application
  • - Design fully complies with ASME B16.34
  • - Tested and Inspected in accordance to API 598



Manufacturer part number: BV(H)63R6S/1000 Series

Socket Weld 3PC Ball Valve 1000 WOG

Download BV63R6S/1000 3PC Ball Valve Cut Sheet.

Download SS316 Socket Weld 3PC Ball Valve Product Literature.



Socket Weld 3PC High Mounted Ball Valve 1000 WOG

Download SS316 Socket Weld High Mounted 3PC Ball Valve Product Literature



  • - ANIX SS316 Socket Weld End 3 Piece Full Port Ball Valve 1000WOG Lockable
  • - Investment Casting Stainless Steel Body
  • - Full Port / Full Bore
  • - Socket Weld End Connection
  • - High / Direct Mounting Pad Fully Complies with ISO 5211
  • - Padlocking Device Handle for Valve Locakability
  • - Blow-Out-Proof Stem Design
  • - Available in R-PTFE or High-Temp PTFE (When Requested) seat materials
  • - Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application
  • - Design fully complies with ASME B16.34
  • - Tested in accordance to API 598



ANIX Stainless Steel Socket Weld End 3-Piece Full Port Ball Valve 1000 WOG with direct mounting pad ISO 5211 manufactured and distributed by ANIX Valve USA are made of high quality 316 Stainless steel. The valve with socket welding end connection ensures no accidental leakage.
