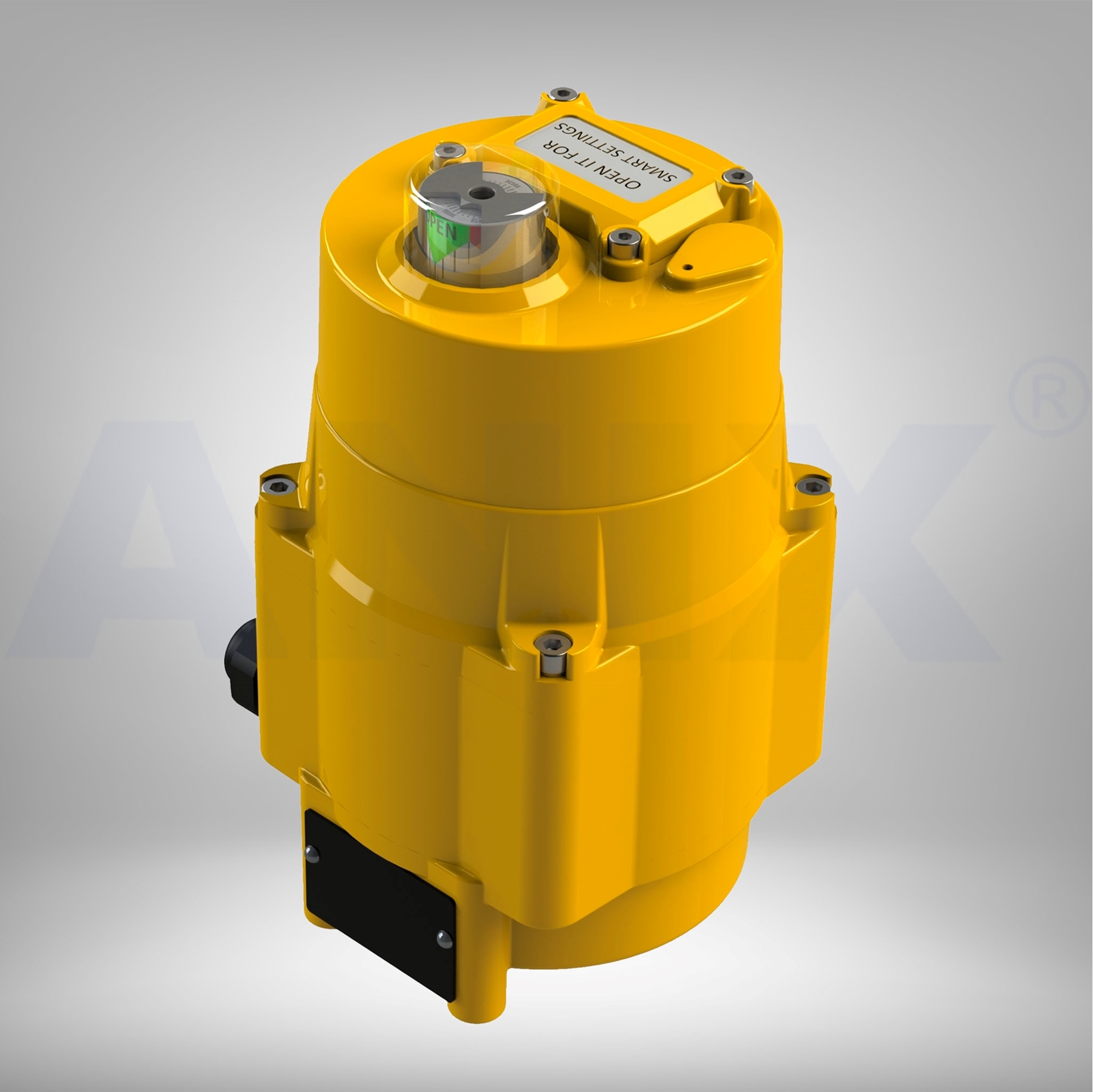

Smart Electric Actuator

CSA Approved & Certified

Models: EP20, EP50, EP100, EP200, EP500, EA200, EA500, EPQ115, EPQ215, EPQ315, EPQ415, EPQ425, EPQ515, EPQ525, EPQ535, EPQ545

Super Capacitor/ Fail-Safe Positioning

Models: EP20, EP50, EP100, EP200A, EP200B, EPQ115, EPQ215, EPQ315

Type

(E) Electronic Basic On-Off, (S) Smart On-OFF, (R) R-Modulating

Torque & Travel Time

Torque (in-lb): 89 ~ 7080

Travel Time (S) 0~90°: ≤ 5 ~ 35

Compact & Light Weight

3.086lb ~ 9.039lb

Protection

IP67/ NEMA 4/ NEMA4X/ NEMA6/ NEMA6P/ Weather-proof/ Corrosion Resistant/ Heater

Electric Connection & Bus Type

2 x 1/2NPT Bus Type: Modbus

Voltage

AC/DC24V/ AC110V/ AC220V/ AC110V 3PH/ AC220V 3PH/ AC380 3PH

Optional

Bluetooth Connectivity/ IP68/ 77°F Heater/ C05 Corrosion protection/ Custom Color Coating/ Metal outer hanging unit/ Metal connection panel

FOR MORE INFORMATION

Features and Benefits:

Calibratable valve closing position: Precision up to 0.1°, allowing for up to 50 adjustments on valve's effective sealing. Extends butterfly valve’s service life by up to 30 times compared to standard applications.
Adjustable valve closing deceleration: Prevents water hammer or hydraulic shock, protecting overall health and function of a valve pipeline system.
Configurable fail position: Allows adjustment from external power failure.
Configurable valve middle position: Easily set the middle position of the valve.
Configurable valve position offset: Adjusts the valve position offset as needed.
Switchable control modes: Easily switch between local control to smart remote control & vice versa.
Adjustable timed signal output: Configure timed signals for valve opening or closing.
Programmable relays: Includes three programmable relay units.
Fast operation: Enables fast ON-OFF under 5 seconds for efficient operation.
