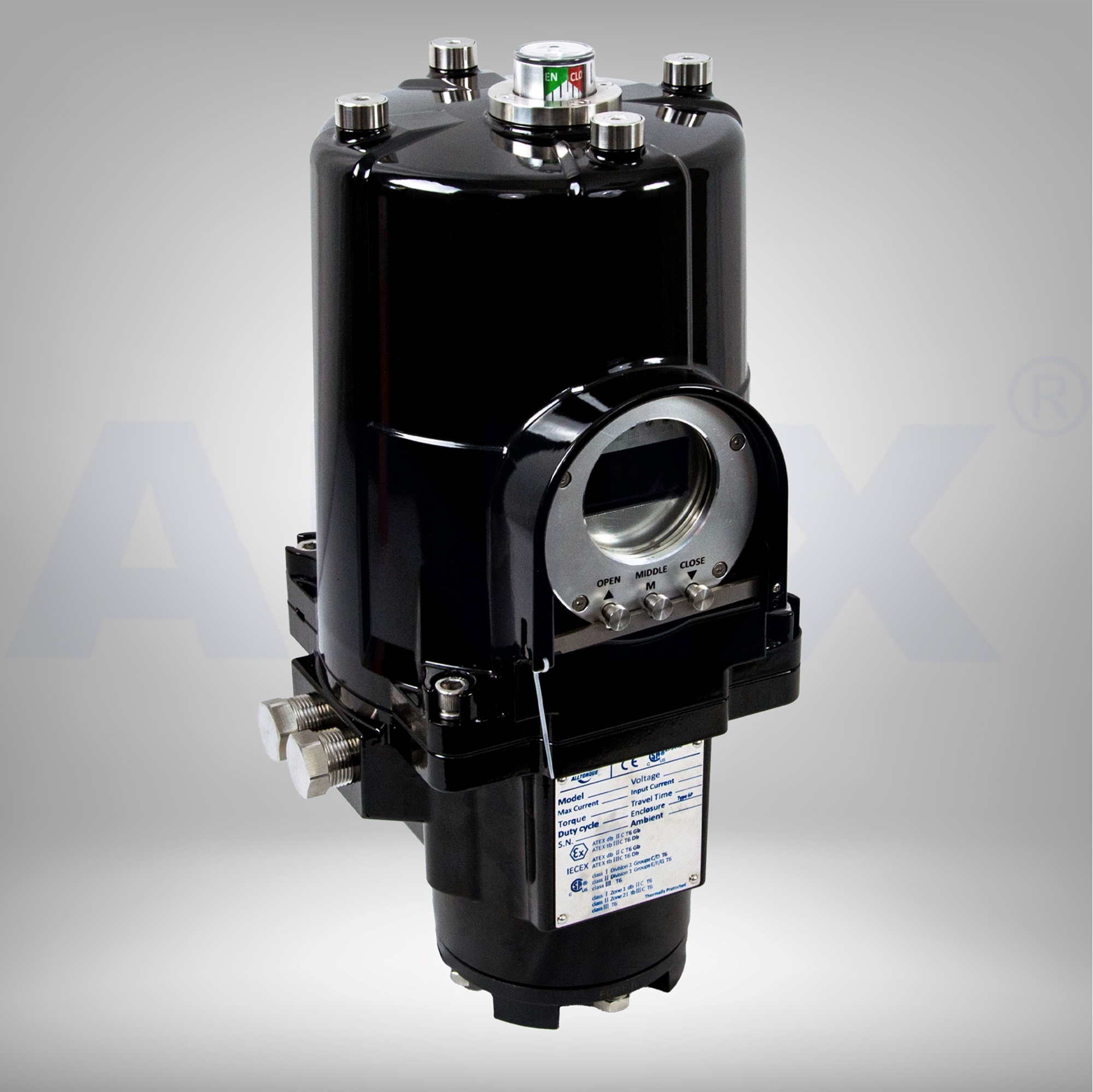

XC Series Explosion-Proof Electric Actuator

Download Product Catalog

Designed for hazardous environments, the XC Series electric actuator offers advanced safety, durability, and energy efficiency. With a built-in fail-safe function and corrosion-resistant construction, it ensures reliable performance in demanding conditions.

Features

• Explosion-Proof Design: Certified for use in hazardous zones.
• Fail-Safe Function: Delivers safety and consistent reliability.
• Energy Efficient: Engineered for optimized long-term performance.
• Corrosion Resistance: Standard ISO 12944 C3-02, with optional ocean-grade C3~C5 protection.
• IP Rating: IP67 as standard, with IP68 customization available.

Technical Specifications

• Torque: 88.5 in-lb to 26,552 in-lb (10N.m to 3000N.m)
• Voltage Options: 24VDC/AC, 110VAC, 220VAC, 380VAC, 440VAC
• Duty Cycle: Continuous running (IEC 60034-1), 51% to 100%
• Temperature:
  • Operating: -40°F to 140°F (-40°C to 60°C)
  • Surface: ≤185°F (85°C)
• Humidity: Resistant up to 95% at 122°F
• Service Life: Rated for 100,000 cycles (1 cycle = 0° ➔ 90° ➔ 0°)

Advanced Functionalities

• Optional Local Panel: Manual control for open, close, and position adjustments.
• Supercapacitor Technology: Supports fail-safe reset for 100,000 cycles.
• Analog Signal Support:
  • Input: 4-20mA, 1-5V, 2-10V
  • Output: 4-20mA, 1-5V, 2-10V
• Start Capacity:
  • EXC100(315) and Below: 5 million starts, 2400 starts/hour
  • EXC200(415) to EXC3000: 2 million starts, 1800 starts/hour
• Operation Panel: Configure open, close, and middle positions, and switch modes.

Reliability and Certifications

• Vibration Resistance:
  • Train Vibration: 5-1200Hz, 1.5g, 4H
  • Road Bumps: 5-100Hz, 10g, 0.5H
  • Earthquake: 10g, 13ms, 125 shocks
• Certifications: ATEX, IECEx (Zone 1, Zone 21), CSA, RoHS compliance

Applications

Ideal for industries including:

• Oil and Gas
• Chemical Processing
• Marine and Offshore
• Power Generation
