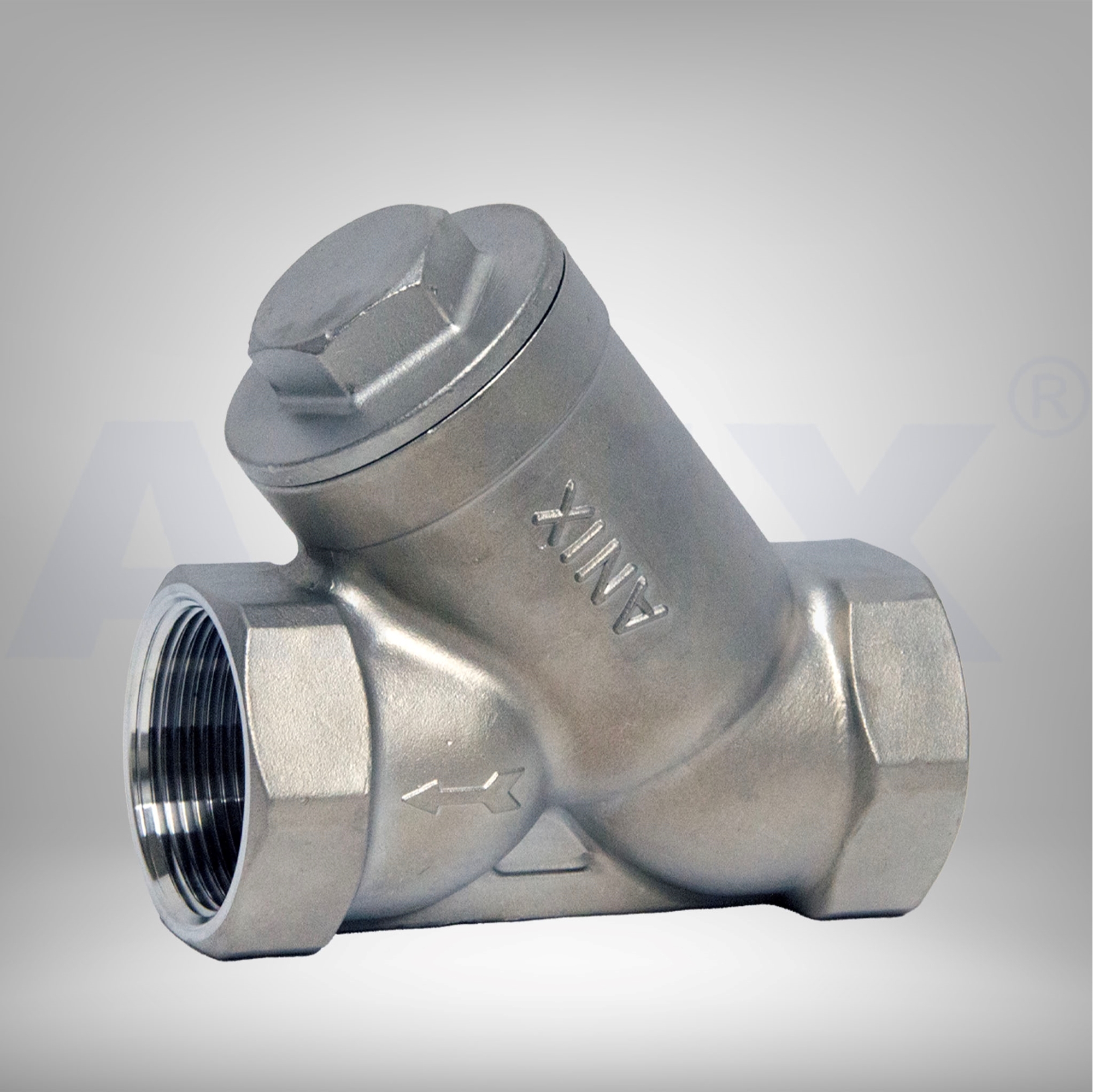

ANIX Stainless Steel Y strainer Class 800 Threaded NPT

316 Stainless Steel WYE Strainer
Size: 1/4" to 3"



  • - 316 SS Stainless Steel Threaded Y- Strainer CL800
  • - Also Known as Wye-Strainer
  • - Stainless Steel, SS 316 Body
  • - Standard screen / basket: Mesh 40
  • - Optional Mesh: 20/40/60/80/100
  • - Design according to ASME B16.34
  • - Test and Inspection in accordence with API 598
  • - Threaded end connection
  • - ASME B1.20.1 (NPT) ISO 7/1 (BSPT, BSP) Threaded Type
  • - Working Pressure 800psi
  • - Temperature range : -20F to 320F
  • - Applicable medium : Water, Oil and Gas





Manufacturer part number: YS11F6N/800 Series

Download YS11F6N Wye Strainer Cut Sheet.

Download SS316 Wye Strainer Product Literature.



  • - ANIX SS Stainless Steel Threaded Y- Strainer CL800
  • - Also Known as Wye-Strainer
  • - Stainless Steel, SS 316 Body
  • - Standard screen / basket: Mesh 40
  • - Optional Mesh: 20/40/60/80/100
  • - Design according to ASME B16.34
  • - Test and Inspection in accordence with API 598
  • - Threaded end connection
  • - ASME B1.20.1 (NPT) ISO 7/1 (BSPT, BSP) Threaded Type
  • - Working Pressure 800psi
  • - Temperature range : -20F to 320F
  • - Applicable medium : Water, Oil and Gas





A Y strainer, also known as a wye strainer, is designed to remove any solids and any other particles that flow through fluids. A y strainer (wye strainer) is an extremely important component in multiple fluid control companies to ensure no down-stream valves are damaged by particles or solids within the fluid. As its name implies, a Y strainer (wye strainer) is shaped like a “Y” and is used to strain, or filter, out particulates from liquid, steam or gas. This straining process is allowed because a filter element made up of perforated metal, mesh, or a wedge wire straining element. The most commonly used straining element is a wire mesh (A mesh made up of a group of little wires). The strainer itself is shaped into a Y shaped design, with the mesh sitting in the middle. The Y strainer (wye strainer) has a better flow pattern then a T shaped strainer, reason being the fluid is allowed to flow through the mesh filter with less change of direction. Of course, the Y strainer would not be able to filter any liquid, gas, or steam without the mesh filter that is filtering the debris and solids out of the stream flow. Y Strainers (wye strainers can be used in vertical or horizontal pipelines. A mesh-lined screen within the strainer removes any solids or particles from the stream as the flow travels through the strainer.
