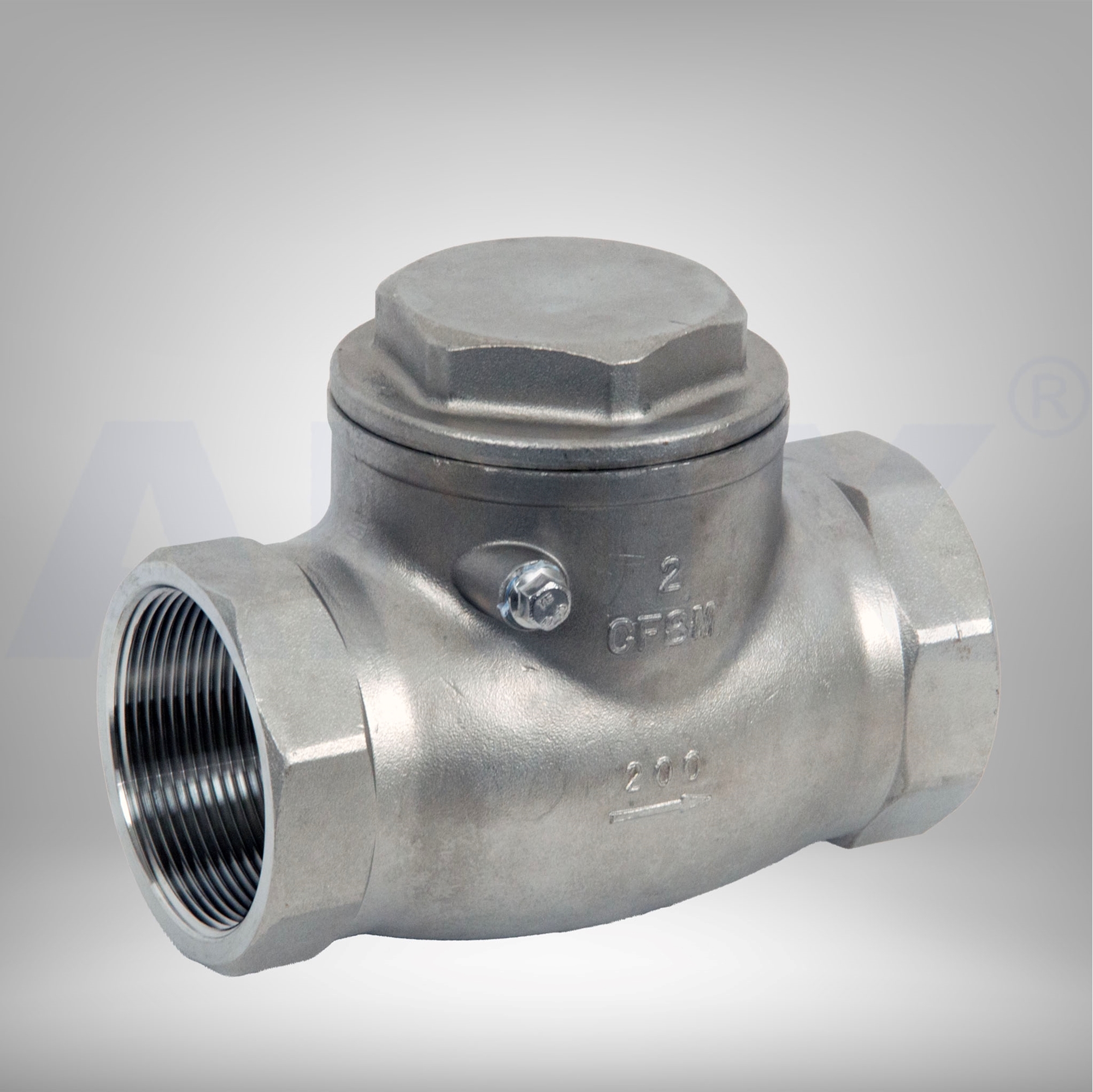

ANIX Stainless Steel Swing Check Valve Class 200 Threaded NPT

  • SS 316, Stainless Steel, CF8M Swing Check Valve Trim 10
  • • Sizes available: 1/2" to 12"
  • Features
  • • Full Bore / Full Port, Trim 10
  • • Design and manufacture for valve according to ASME B16.34.
  • • Inspection and Test according to API 598 - 2009.
  • • Face to face - ASME B16.10
  • • End Flange connection - ASME B16.5
  • • Temperature Range: -20F to 797F
  • • Applicable medium: Water, Oil, Gas
ANIX Part Number: CV14W6N/200 Series


Download SS316 Swing Check Valve Product Catalog.

Download CV14W6N/200 Swing Check Valve Data Sheet.

Product Description

Introducing the ANIX Swing Check Valve Class 200 Threaded NPT, crafted from Stainless Steel 316 SS for durability and performance. Featuring a Full Port / Full Bore design, it adheres to ASME B16.34 standards for robust construction. This valve undergoes rigorous Test & Inspection according to API 598, ensuring reliability under diverse operational conditions. With Threaded End Connections following ANSI B1.20.1 (NPT) specifications, it supports a Working Pressure of 200 psi, making it suitable for Water, Oil, and Gas applications. Enhance your industrial setup with the ANIX Swing Check Valve, delivering consistent performance and durability.
