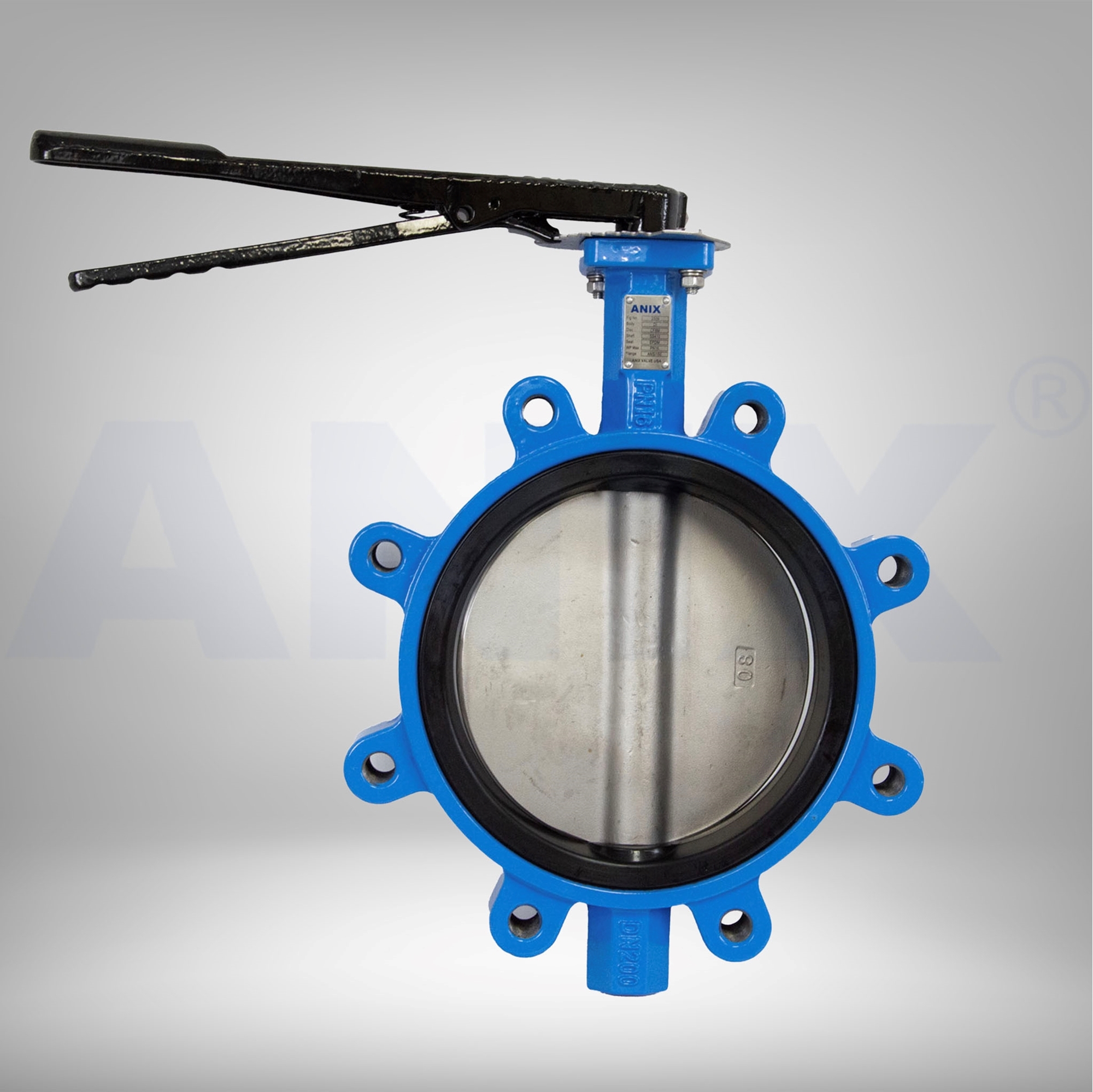

ANIX Lug Butterfly Valve DI

  • Lug Butterfly Valve
  • • Sizes Available: 2 in ~ 8 in: Lever operate, 8 in ~ 10 in: Gear operate
  • Features
  • • Body Material: Ductile Iron
  • • Coating: Premium Quality with Fusion Bonded Epoxy Coating
  • • Shaft and Stem: SS410 Shaft and Square Stem, Pinless (Without Pin)
  • • Seat Options: EPDM Seat with CF8M (SS316) Disc, Buna (NBR) Seat with NI-DI Disc
  • • Connection: Lug Style Connection Compatible with ANSI CL150 Flange
  • • Maximum Working Pressure: 230 PSI
  • • Temperature Range: -50°F ~ 248°F
  • • Top Flange: ISO 5211

ANIX Lug Butterfly Valve DI

Download Lug Butterfly Valve Product Catalog

Product Description

The Lug Butterfly Valve is a versatile and high-performance valve available in sizes from 2 inches to 8 inches with lever operation, and from 8 inches to 10 inches with gear operation. Constructed with a durable ductile iron body, this valve features a premium quality fusion bonded epoxy coating for enhanced protection. It includes an SS410 shaft and square stem with a pinless design, ensuring reliability and longevity. The Lug Butterfly Valve offers seat options of either an EPDM seat with a CF8M (SS316) disc or a Buna (NBR) seat with an NI-DI disc. Compatible with ANSI CL150 flange connections, it supports a maximum working pressure of 230 PSI. With a wide temperature range of -50°F to 248°F, this valve is suitable for various applications. Additionally, the top flange is designed to ISO 5211 standards, providing compatibility with industry-standard mounting hardware.
