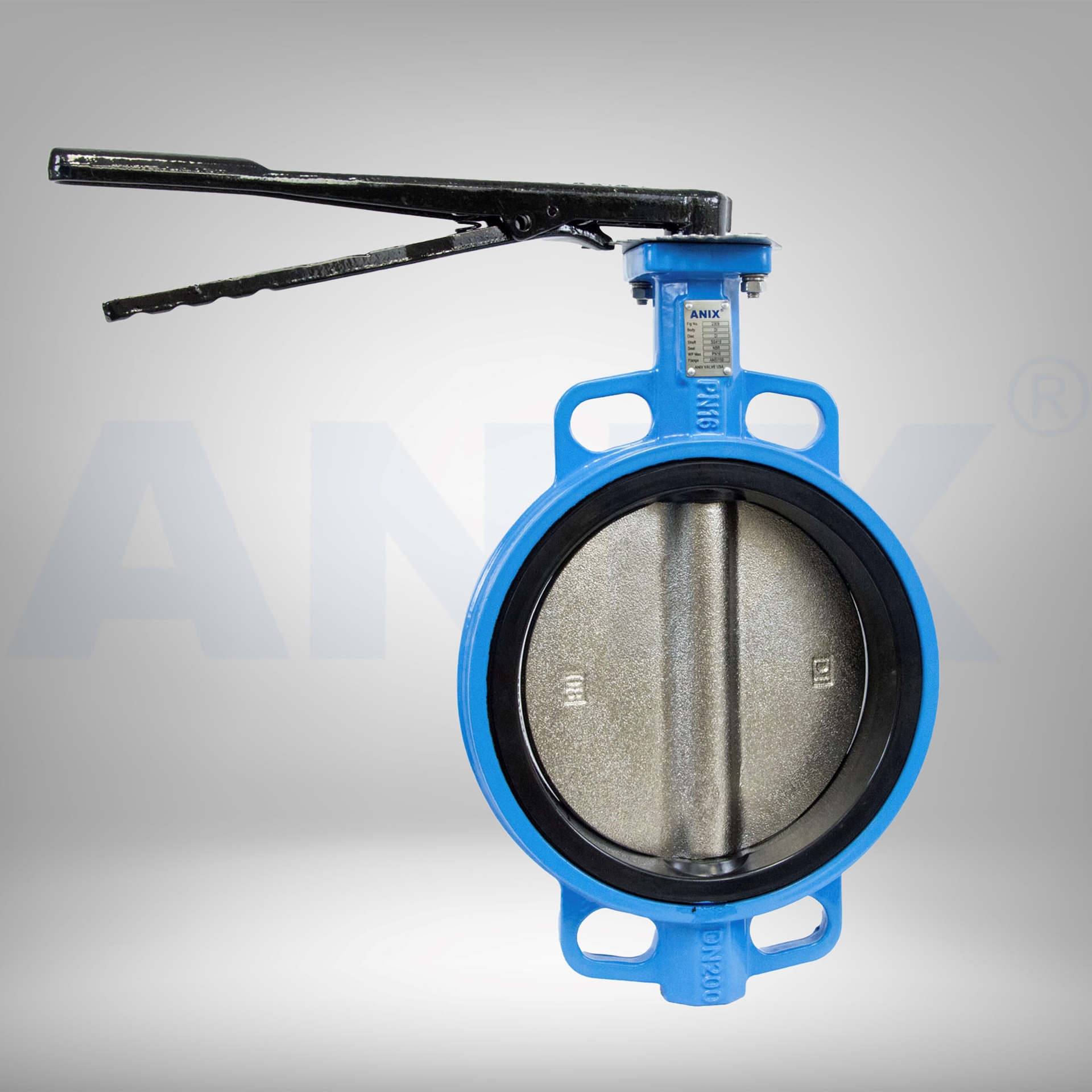

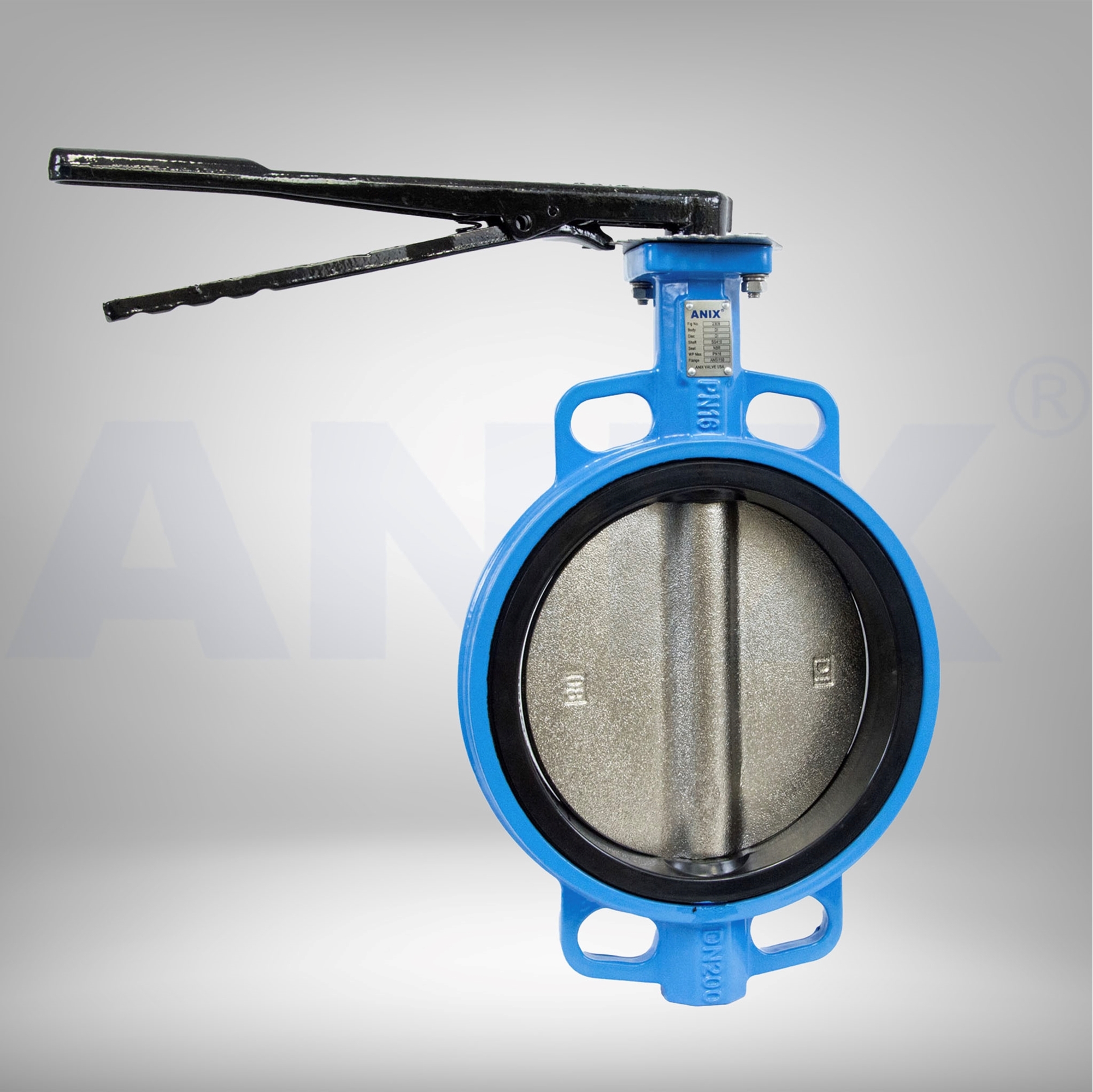

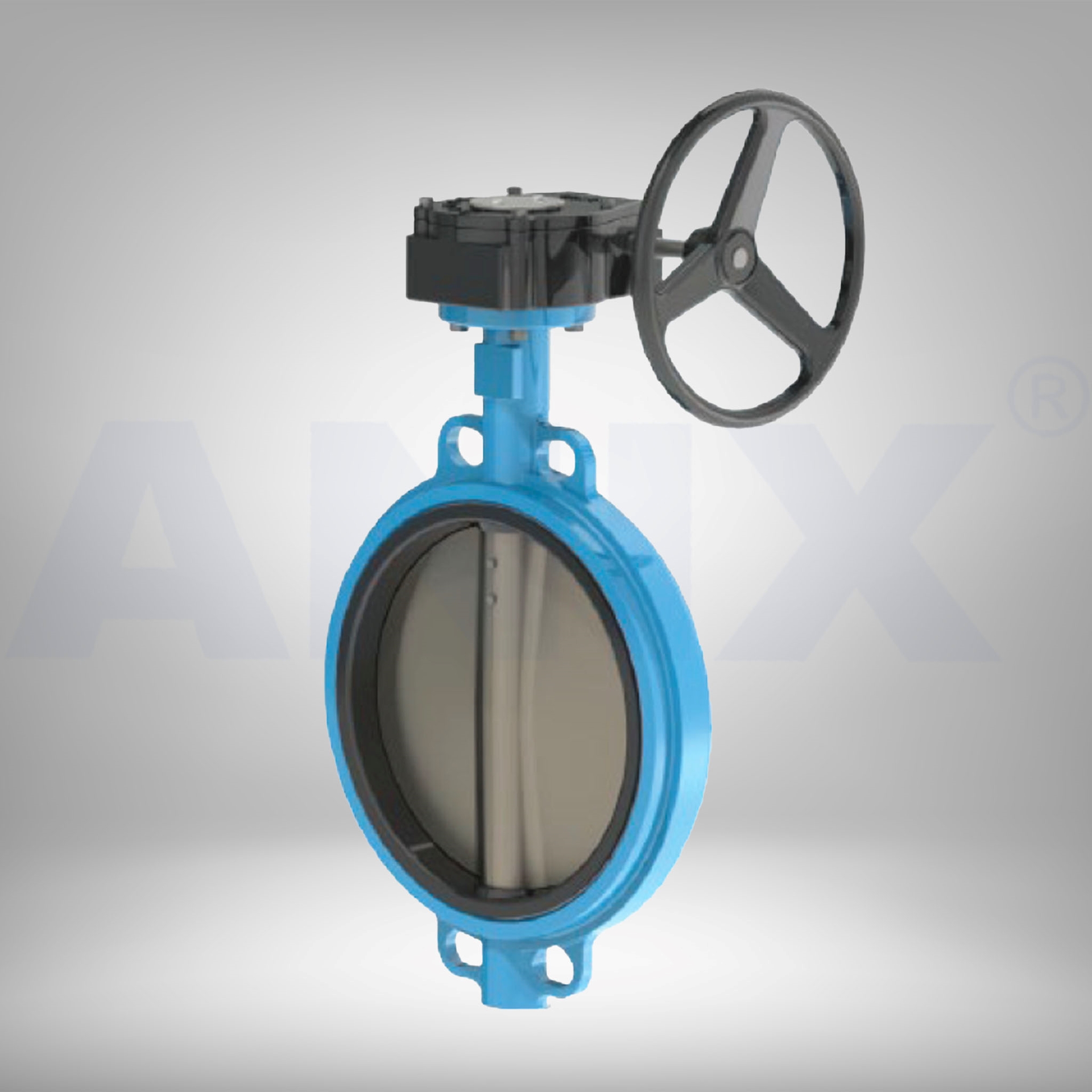

The Wafer Butterfly Valve is a versatile and high-performance valve available in sizes from 2 inches to 8 inches with lever operation, and from 8 inches to 10 inches with gear operation. Constructed with a durable ductile iron body, this valve features a premium quality fusion bonded epoxy coating for enhanced protection. It includes an SS410 shaft and square stem with a pinless design, ensuring reliability and longevity. The Wafer Butterfly Valve offers seat options of either an EPDM seat with a CF8M disc or a Buna (NBR) seat with an NI-DI disc. Compatible with ANSI CL150 flange connections, it supports a maximum working pressure of 230 PSI. With a wide temperature range of -50°F to 248°F, this valve is suitable for various applications. Additionally, the top flange is designed to ISO 5211 standards, providing compatibility with industry-standard mounting hardware.
