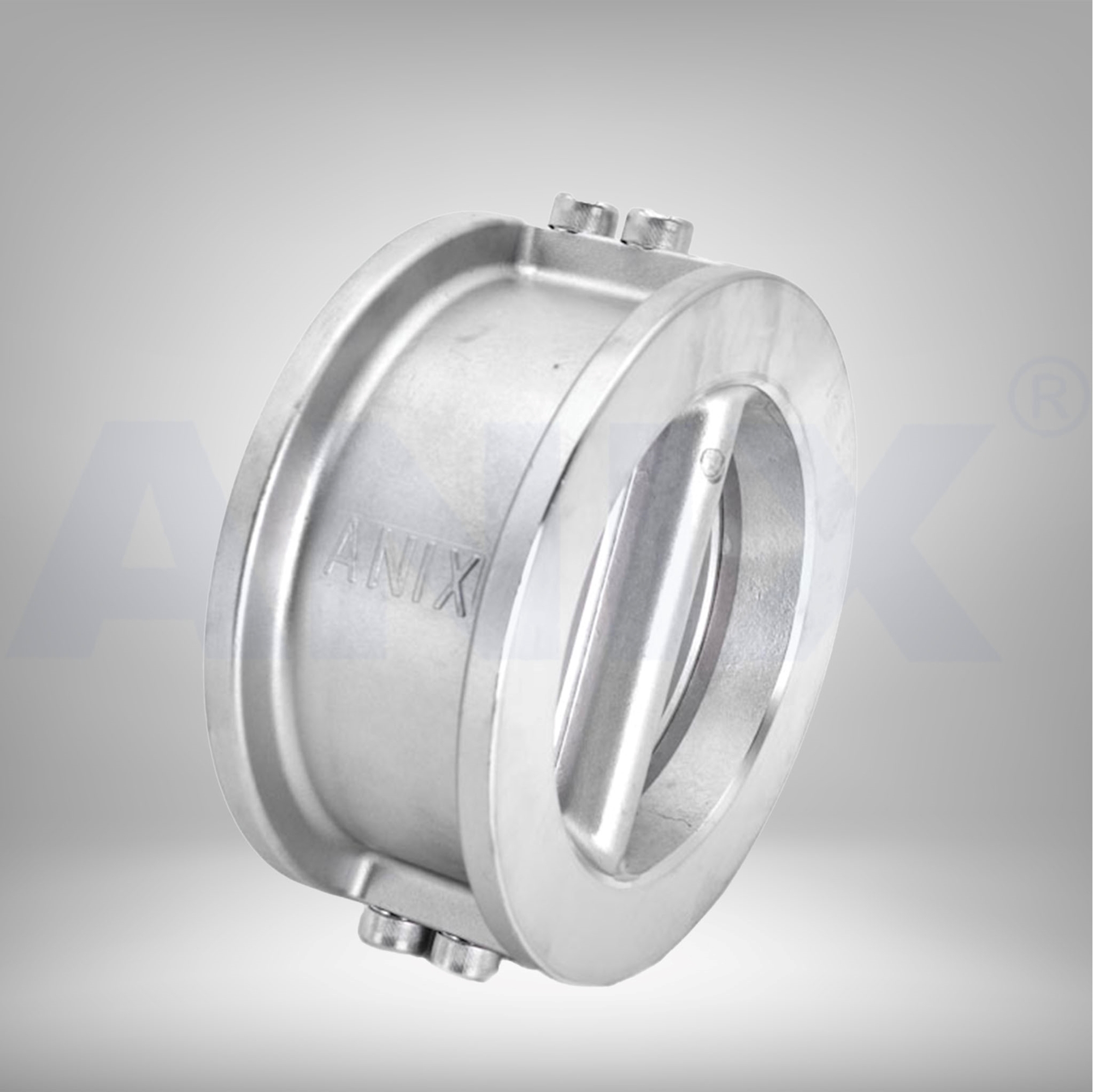

ANIX Stainless Steel Wafer Double Disc Spring Check Valve

  • Wafer Double Disc Check Valve, Sizes available: 2" ~ 24"
  • • ANIX Wafer Double Disc Spring Check Valve
  • • Class 150 lb
  • • Stainless steel CF8M A351 Body and Disc material
  • • PTFE Seat Packing
  • • 275 PSI @ 100°F
  • • Design and manufacture according to ANSI B16.34-2009
  • • Face-to-face dimensions according to ASME B16.10-2009
  • • End Flange dimensions ASME B16.5-2009
  • • Inspection and Testing in accordance with API 598-2009
ANIX Part Number: CV76W6W/150

Download CV76W6W/150 Wafer Double Disc Spring Check Valve Product Catalog.



The ANIX Wafer Double Disc Spring Check Valve is rated at Class 150 lb and features a stainless steel CF8M A351 body and disc material with PTFE seat packing. It operates at 275 PSI at 100°F. Designed and manufactured according to ANSI B16.34-2009, its face-to-face dimensions comply with ASME B16.10-2009, and the end flange dimensions meet ASME B16.5-2009 standards. Inspection and testing are conducted in accordance with API 598-2009.
