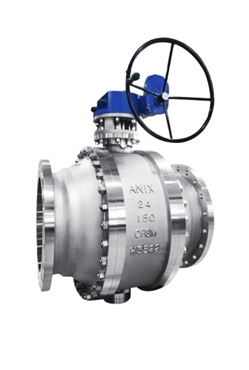

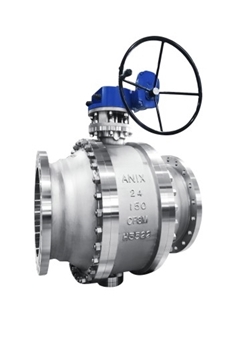

Trunnion Ball Valve

Picture for category Trunnion Ball Valve

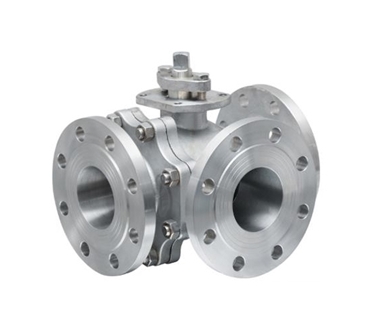

3-Way Ball Valve

Picture for category 3-Way Ball Valve

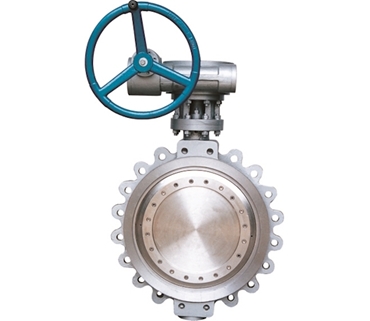

Butterfly Valve

Picture for category Butterfly Valve
ANIX VALVE USA
Picture of ANIX Stainless Steel Gate Valve Class 150 / 300 RF

ANIX Stainless Steel Gate Valve Class 150 / 300 RF

  • Stainless Steel Flanged Gate Valve Trim 10
  • • Sizes available: 1/2" to 14"
  • Features
  • • Also Known as ANIX CF8M Gate Valve
  • • OS & Yoke, Rising Stem, Wedge type, Flange End
  • • Standard Graphite Packing & Gasket
  • • Other Gasket Material can be made available.
  • • Design and Manufacture according to API 600 or API 602.
  • • Face-to-Face dimension according to ASME B16.10 - 2009
  • • End Flange Dimension according to ASME B16.5 - 2009
  • • Inspection and Test according to API 598 - 2009
Picture of ANIX Stainless Steel Swing Check Valve Class 150 / 300 RF

ANIX Stainless Steel Swing Check Valve Class 150 / 300 RF

  • SS 316, Stainless Steel, CF8M Swing Check Valve Trim 10
  • • Sizes available: 1/2" to 12"
  • Features
  • • Full Bore / Full Port, Trim 10
  • • Design and manufacture for valve according to ASME B16.34.
  • • Inspection and Test according to API 598 - 2009.
  • • Face to face - ASME B16.10
  • • End Flange connection - ASME B16.5
  • • Temperature Range: -20F to 797F
  • • Applicable medium: Water, Oil, Gas
Picture of ANIX Stainless Steel Globe Valve Class 150 / 300 RF

ANIX Stainless Steel Globe Valve Class 150 / 300 RF

  • Flanged Globe Valve Trim 10 ANSI 150 / ANSI 300
  • • Sizes available: 1/2" to 14" Trim 10
  • Features
  • • Also known as ANIX CF8M Globe Valve
  • • Rising Stem, Trim 10, Graphite Packing, Wedge Type
  • • Design and Manufacture according ANSI B16.34 - 2009
  • • Face-to-Face dimensions according to ASME B16.10 - 2009
  • • End Flange Dimension according to ASME B16.5 - 2009
  • • Inspection and Test according to API 598 - 2009
Picture of ANIX Stainless Steel Y strainer Class 150 / 300 RF

ANIX Stainless Steel Y strainer Class 150 / 300 RF

  • 316 Stainless Steel WYE Strainer
  • • Size: 1/2" to 8"
  • Features
  • • ANIX 316 SS Flanged Y- Strainer Class 150 / Class 300
  • • Stainless Steel, CFM, SS Body
  • • Standard screen / basket: Mesh 60
  • • Optional Mesh: 20/40/60/80/100
  • • Design according to ASME B16.34
  • • Test and Inspection in accordance with API 598
  • • End Flange Connection ASME B16.5
  • • Working Pressure Class 150 / Class 300
  • • Temperature range: -20°F to 320°F
  • • Applicable medium: Water, Oil and Gas
Picture of ANIX Stainless Steel 3-Way Flanged Ball Valve ANSI Class 150

ANIX Stainless Steel 3-Way Flanged Ball Valve ANSI Class 150

  • ANIX CF8M Flanged Three Way Ball Valve
  • • Sizes: 1", 1-1/2", 2", 2-1/2", 3", 4"
  • Features
  • • T port Mixer Valve or L port Diverter Valve
  • • Stainless Steel CF8M Body, SS316 Trim
  • • Full Port Design
  • • Blow-out-proof stem design
  • • ISO 5211 Direct Mount Pad
  • • Design: ASME B16.34
  • • Face to Face - ASME B16.10
  • • Flange end connection - ASME16.5
  • • Test and inspection in accordance with API 598
  • • Working Pressure Class 150
  • • Temperature Range -20F to 356F (R-PTFE) -20F to 302F (PTFE)
  • • Application medium: Water, Oil and Gas
Picture of ANIX Carbon Steel Gate Valve - RF, Trim 8 Class 150 / 300 / 600

ANIX Carbon Steel Gate Valve - RF, Trim 8 Class 150 / 300 / 600

  • Cast Steel Gate Valve, WCB or CS
  • • Sizes available: 2" ~ 12"
    Size 14" ~ 32" available for Made-to-Order only.
    Class 600 available for Made-to-Order only.
  • Features
  • • OS & Yoke, Rising Stem, Wedge type, Flanged End
  • • Standard Graphite Packing
  • • Other gasket material can be made available
  • • Design and Manufacture according to API 600 or API 602
  • • Face-to-Face dimensions according to ASME B16.10 - 2009
  • • End Flange Dimension according to ASME B16.5 - 2009
  • • Inspection and Test according to API 598 - 2009
Picture of ANIX Carbon Steel Swing Check Valve - RF, Trim 8, Class 150 / 300 / 600

ANIX Carbon Steel Swing Check Valve - RF, Trim 8, Class 150 / 300 / 600

  • Known as Cast Steel, Carbon Steel, WCB or CS Swing Check Valve
  • Size: 2" to 12"
  • Size 14" to 20" available for made-to-order only
  • Class 600 available for made-to-order only
  • Features
  • • Full Port, Trim 8, Flanged End
  • • Design and manufacture for valve according to ASME B16.34
  • • Inspection and Test according to API 598 - 2009
  • • Face to face - ASME B16.10
  • • End Flange connection - ASME B16.5
  • • Temperature Range: -20F to 797F
  • • Applicable medium: Water, Oil, Gas


Picture of ANIX Carbon Steel Globe Valve - RF, Trim 8, Class 150 / 300 / 600

ANIX Carbon Steel Globe Valve - RF, Trim 8, Class 150 / 300 / 600

  • Known as Cast Steel, Carbon Steel, WCB or CS Globe Valve
  • • Sizes available: 1/2" ~ 12"
  • • Size 14" ~ 20" available for made-to-order only.
  • • Class 600 available for made-to-order only.
  • Features
  • • Outside Screw & Yoke, Rising Stem, Flange End
  • • Standard Graphite Packing
  • • Other gasket material can be made available
  • • Design and Manufacture according to ANSI B16.34 - 2009
  • • Face-to-Face dimensions according to ASME B16.10 - 2009
  • • End Flange Dimension according to ASME B16.5 - 2009
  • • Inspection and Test according to API 598 - 2009
Picture of ANIX Carbon Steel Y strainer Class 150 / 300 RF

ANIX Carbon Steel Y strainer Class 150 / 300 RF

  • Carbon Steel Size: 1/2" to 8"
  • Features
  • • Also known as Wye-Strainer Class 150 / Class 300 RF
  • • Carbon Steel, Cast steel, WCB body
  • • Standard screen / basket: Mesh 60
  • • Optional Mesh: 20/40/60/80/100
  • • Design according to ASME B16.34
  • • Test and Inspection in accordance with API 598
  • • End Flange Connection ASME B16.5
  • • Working Pressure Class 150 / Class 300
  • • Temperature range: -20°F to 320°F
  • • Applicable medium: Water, Oil and Gas
Picture of ANIX Carbon Steel Flanged Ball Valve ANSI Class 150 / 300

ANIX Carbon Steel Flanged Ball Valve ANSI Class 150 / 300

  • Full Port Floating Ball Valve
  • • Size: 1/2" to 1 1/4" (Solid SS316 Ball, Lever)
  • • Size: 1 1/2" to 8" (Hollow or Solid SS316 Ball, Lever)
  • • Size: 6" to 12" (Hollow or Solid SS316 Ball, Gear)
  • Features
  • • WCB A216 RFFE 2-PC CS Full Port Ball Valve ANSI 150/300
  • • A216 Cast Carbon Steel Body
  • • Full Port / Full Bore
  • • SS316 Ball & Stem, RPTFE Seat
  • • Flange End Connection according to ASME B16.5
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Graphite Packing
  • • Fire Safe and Anti-static Design with R-PTFE seat materials
  • • ANSI 150 or ANSI 300
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34 and API 607
  • • Tested and inspected in accordance with API 598
Picture of ANIX Stainless Steel 2-Piece Ball Valve 3000# NPT Threaded

ANIX Stainless Steel 2-Piece Ball Valve 3000# NPT Threaded

  • SS316 2 Piece Ball Valve 3000#
  • • Sizes Available: 1/2" to 2"
  • Features
  • • Investment Casting Stainless Steel with Reduced Port Body.
  • • NPT Threaded End Connection (ANSI B1.20.1).
  • • Lockable Handle.
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE, R-PTFE seat material.
  • • High-Temp PTFE seat materials can be made available.
  • • Working Pressure of 3000 Psi.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested and Inspected in accordance with API 598.
Picture of ANIX Stainless Steel Mini Ball Valve Female x Female 1000# NPT Threaded

ANIX Stainless Steel Mini Ball Valve Female x Female 1000# NPT Threaded

  • 316 Stainless Steel Mini Ball Valve F x F
  • • Sizes available: 1/4", 3/8", 1/2", 3/4", 1"
  • Features
  • • Investment Casting, Reduced Port Body
  • • Three Variants of Connection Type
  • • NPT Threaded End Connection (ANSI B1.20)
  • • Blow-Out-Proof Stem Design
  • • Available in PTFE or R-PTFE seat materials
  • • Working Pressure of 1000 PSI
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598
  • • Black Handle for 1/4" Mini ball valve available


Picture of ANIX Stainless Steel Mini Ball Valve Male x Female 1000# NPT Threaded

ANIX Stainless Steel Mini Ball Valve Male x Female 1000# NPT Threaded

  • 316 Stainless Steel Mini Ball Valve M x F
  • • Sizes available: 1/4", 3/8", 1/2", 3/4", 1"
  • Features
  • • Investment Casting, Reduced Port Body
  • • Three Variants of Connection Type
  • • NPT Threaded End Connection (ANSI B1.20)
  • • Blow-Out-Proof Stem Design
  • • Available in PTFE or R-PTFE seat materials
  • • Working Pressure of 1000 PSI
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598
  • • Black Handle for 1/4" Mini ball valve available


Picture of ANIX Stainless Steel Mini Ball Valve Male x Male 1000# NPT Threaded

ANIX Stainless Steel Mini Ball Valve Male x Male 1000# NPT Threaded

  • 316 Stainless Steel Mini Ball Valve M x M
  • • Sizes available: 1/4", 3/8", 1/2", 3/4", 1"
  • Features
  • • Investment Casting, Reduced Port Body
  • • Three Variants of Connection Type
  • • NPT Threaded End Connection (ANSI B1.20)
  • • Blow-Out-Proof Stem Design
  • • Available in PTFE or R-PTFE seat materials
  • • Working Pressure of 1000 PSI
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598
  • • Black Handle for 1/4" Mini ball valve available


Picture of ANIX Stainless Steel Wafer Double Disc Spring Check Valve

ANIX Stainless Steel Wafer Double Disc Spring Check Valve

  • Wafer Double Disc Check Valve, Sizes available: 2" ~ 24"
  • • ANIX Wafer Double Disc Spring Check Valve
  • • Class 150 lb
  • • Stainless steel CF8M A351 Body and Disc material
  • • PTFE Seat Packing
  • • 275 PSI @ 100°F
  • • Design and manufacture according to ANSI B16.34-2009
  • • Face-to-face dimensions according to ASME B16.10-2009
  • • End Flange dimensions ASME B16.5-2009
  • • Inspection and Testing in accordance with API 598-2009
Picture of ANIX Sanitary Butterfly Valve - Clamp End / Pull Handle

ANIX Sanitary Butterfly Valve - Clamp End / Pull Handle

  • ANIX Sanitary Butterfly Valve Quick-Install - Pull Handle
  • • 316L Stainless Steel Material
  • • Clamp End Connection
  • • EPDM Seat
  • • 145 psi Max Working Pressure
  • • 15°F to 248°F Temperature range
  • • Pull Handle
Picture of ANIX Sanitary Butterfly Valve - Butt Weld End / Pull Handle

ANIX Sanitary Butterfly Valve - Butt Weld End / Pull Handle

  • ANIX SS 316L Sanitary Butterfly Valve Butt Weld SMS3A EPDM - Pull Handle
  • 316L Stainless Steel Material
  • Butt Weld End Connection
  • EPDM Seat
  • 145 psi Max Working Pressure
  • 15°F to 248°F Temperature range
  • Pull Handle
Picture of ANIX Sanitary Butterfly Valve - Clamp End / Trigger Handle

ANIX Sanitary Butterfly Valve - Clamp End / Trigger Handle

  • ANIX SS 316L Sanitary Butterfly Valve Quick-Install SMA3A EPDM - Polymer Trigger Handle
  • 316L Stainless Steel Material
  • Clamp End Connection
  • EPDM Seat
  • 145 psi Max Working Pressure
  • 15°F to 248°F Temperature range
  • Trigger Handle
Picture of ANIX Stainless Steel 1-Piece Unibody Ball Valve 1000# NPT Threaded

ANIX Stainless Steel 1-Piece Unibody Ball Valve 1000# NPT Threaded

  • One Piece Reduced Port Ball Valve
  • 316 Stainless Steel
  • Size: 1/4" to 3"
  • Features
  • • Investment Casting Stainless Steel.
  • • NPT Threaded End Connection (ANSI B1.20).
  • • Lockable Handle.
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE, R-PTFE seat materials.
  • • High-Temp PTFE seat materials can be made available.
  • • Working Pressure of 1000 PSI.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested in accordance to API 598.

Picture of ANIX Stainless Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded

ANIX Stainless Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded

  • 2-Piece Full Port Ball Valve
  • • Available in 1000 & 2000 WOG
  • • Available in Seal Welded Body
  • • Size: 1/4" to 4"
  • Features
  • • Investment Casting Stainless Steel with Full Port Body.
  • • NPT Threaded End Connection (ANSI B1.20).
  • • Lockable Handle.
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE or R-PTFE seat material.
  • • High-Temp PTFE seat materials can be made available.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested in accordance to API 598.
Picture of ANIX Stainless Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded with Oval Handle

ANIX Stainless Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded with Oval Handle

  • 2-Piece Full Port Ball Valve with Oval Handle
  • • Available in 1000 or 2000 WOG
  • • Size: 1/4" to 2"
  • Features
  • • Investment Casting Stainless Steel with Full Port Body.
  • • NPT Threaded End Connection (ANSI B1.20).
  • • Oval Handle.
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE, R-PTFE seat material.
  • • High-Temp PTFE seat materials can be made available.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested in accordance to API 598.
Picture of ANIX Stainless Steel 2-Piece Ball Valve 1000# NPT Threaded with Direct Mount Pad

ANIX Stainless Steel 2-Piece Ball Valve 1000# NPT Threaded with Direct Mount Pad



  • 2PC Full Port Direct Mount Ball Valve
  • • Sizes Available: 1/4" to 2"
  • Features
  • • Investment Cast Stainless Steel with Full Port Body
  • • NPT Threaded End Connection (ANSI B1.20)
  • • ISO 5211 Direct Mount Pad
  • • Blow-Out-Proof Stem Design
  • • Working Pressure of 1000 Psi
  • • Water, Oil, or Gas Medium Application
  • • R-PTFE Suitable for Constant Temperature: -20°F to 356°F
  • • R-PTFE Temperature range with peak spikes: -50°F to 450°F
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598
Picture of ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded

ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded

  • Three Piece Full Port Ball Valve
  • • Sizes available: 1/4" to 4"
  • • 316 Stainless Steel
  • Features
  • • Investment Casting Stainless Steel with Full Port Body
  • • NPT Threaded End Connection (ANSI B1.20.1)
  • • Lockable Handle.
  • • Blow-Out-Proof Stem Design
  • • PTFE, R-PTFE, or High-Temp PTFE seat materials
  • • Working Pressure of 1000 Psi
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested and Inspected in accordance to API 598
Picture of ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded with Direct Mount Pad

ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded with Direct Mount Pad

  • 3PC Full Port Ball Valve with Direct Mount Pad
  • • Sizes available: 1/4" to 4"
  • • 316 Stainless Steel
  • Features
  • • Investment Casting Stainless Steel with Full Port Body
  • • NPT Threaded End Connection (ANSI B1.20.1)
  • • Direct Mounting Pad Fully Complies with ISO 5211
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • PTFE, R-PTFE, or High-Temp PTFE seat materials
  • • Working Pressure of 1000 Psi
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested and Inspected in accordance to API 598
Picture of ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded with Oval Handle

ANIX Stainless Steel 3-Piece Ball Valve 1000# NPT Threaded with Oval Handle



  • SS316 3-PC Full Port Ball Valve with Oval Handle
  • • Sizes Available: 1/4" to 2"
  • Features
  • • Investment Casting Stainless Steel with Full Port Body.
  • • NPT Threaded End Connection (ANSI B1.20.1).
  • • Oval Handle
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE, R-PTFE, or High-Temp PTFE seat materials.
  • • Working Pressure of 1000 Psi.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested and Inspected in accordance with API 598.
Picture of ANIX Stainless Steel 3-Piece Ball Valve 2000# NPT Threaded with Direct Mount Pad

ANIX Stainless Steel 3-Piece Ball Valve 2000# NPT Threaded with Direct Mount Pad

  • 3PC Full Port Ball Valve 2000# with Direct Mount
  • • Sizes available: 1/4" to 4"
  • • 316 Stainless Steel
  • Features
  • • Investment Casting Stainless Steel with Full Port Body
  • • NPT Threaded End Connection (ANSI B1.20.1)
  • • Direct Mounting Pad Fully Complies with ISO 5211
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • PTFE, R-PTFE, or High-Temp PTFE seat materials
  • • Working Pressure of 2000 PSI
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested and Inspected in accordance to API 598
Picture of ANIX Stainless Steel 3-Piece Spring Loaded Check Valve Threaded NPT

ANIX Stainless Steel 3-Piece Spring Loaded Check Valve Threaded NPT

  • 316 Stainless steel, PN40 Size: 1/4" to 2"
  • • ANIX Stainless Steel 3-Piece spring loaded check valve NPT
  • • Investment casting, 316 Stainless steel, PN40
  • Features
  • • Available in PTFE, R-PTFE, or High-Temp PTFE seat materials
  • • Working Pressure of 600 PSI WOG
  • • Design: ASME B16.34
  • • Inspection and Test: API 598
  • • The connection ANSIB1.20.1
Picture of ANIX Stainless Steel 3-Way Ball Valve 1000# NPT Threaded

ANIX Stainless Steel 3-Way Ball Valve 1000# NPT Threaded

  • L Port or T Port 3-Way Ball Valve
  • • Size: 1/4" to 2"
  • Features
  • • SS316 Body & Trim
  • • Reduced Port
  • • SS316 Ball, PTFE or RPTFE Seat
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Working Pressure of 1000 PSI
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design Fully Complies with ASME B16.34
  • • Tested and Inspected in Accordance with API 598
Picture of ANIX Stainless Steel 3-Way Ball Valve 1000# NPT Threaded with Direct Mount Pad

ANIX Stainless Steel 3-Way Ball Valve 1000# NPT Threaded with Direct Mount Pad

  • L Port or T Port with Direct Mount Pad
  • • Size: 1/4" to 2"
  • Features
  • • SS316 Body & Trim
  • • ISO 5211 Direct Mount Pad
  • • Reduced Port
  • • SS316 Ball, PTFE or RPTFE Seat
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Working Pressure of 1000 PSI
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design Fully Complies with ASME B16.34
  • • Tested and Inspected in Accordance with API 598
Picture of ANIX Stainless Steel Ball Valve with Deadman Spring Return Handle

ANIX Stainless Steel Ball Valve with Deadman Spring Return Handle

  • Full Port Deadman Ball Valve
  • • Available in 1000 WOG
  • • Fail Open or Fail Close
  • • Available in 2PC or 3PC Body
  • • Size: 1/4" to 2"
  • • Threaded, Socket Weld or Sanitary Clamp Connection.
  • Features
  • • Investment Casting Stainless Steel with Full Port Body.
  • • NPT Threaded End Connection (ANSI B1.20).
  • • Deadman Spring Return Handle.
  • • Blow-Out-Proof Stem Design.
  • • Available in PTFE or R-PTFE seat material.
  • • High-Temp PTFE seat materials can be made available.
  • • For Water, Oil, or Gas Medium Application.
  • • Design fully complies with ASME B16.34.
  • • Tested in accordance to API 598.
Picture of ANIX Stainless Steel Extended Long Weld Ends 3-Piece Ball Valve 1000#

ANIX Stainless Steel Extended Long Weld Ends 3-Piece Ball Valve 1000#

  • Extended Weld End 3-PIECE SS 316 Full Port BALL VALVE 1000
  • • Size available: 1/4" to 4"
  • Features
  • • Investment Cast Stainless Steel with Full Port Body
  • • Extended Weld End Connection
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Available in PTFE or R-PTFE
  • • Working Pressure of 1000 Psi
  • • Design fully complies with ASME B16.34
  • • Tested in accordance to API 598


Picture of ANIX Stainless Steel Flanged Ball Valve ANSI Class 150 / 300

ANIX Stainless Steel Flanged Ball Valve ANSI Class 150 / 300

  • Full Port Floating Ball Valve
  • • Size: 1/2" to 1 1/4" (Solid SS316 Ball, Lever)
  • • Size: 1 1/2" to 8" (Hollow or Solid SS316 Ball, Lever)
  • • Size: 6" to 12" (Hollow or Solid SS316 Ball, Gear)
  • Features
  • • CF8M SS316 RFFE 2-PC SS Full Port Ball Valve ANSI 150/300
  • • CF8M Cast Stainless Steel Body
  • • Full Port / Full Bore
  • • SS316 Ball & Stem, RPTFE Seat
  • • Flange End Connection according to ASME B16.5
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Graphite Packing
  • • Fire Safe and Anti-static Design with R-PTFE seat materials
  • • ANSI 150 or ANSI 300
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34 and API 607
  • • Tested and inspected in accordance with API 598
Picture of ANIX Stainless Steel Globe Valve Class 200 Threaded NPT

ANIX Stainless Steel Globe Valve Class 200 Threaded NPT

  • 316 Stainless steel Globe Valve Threaded
  • • Sizes available: 1/2" to 3"
  • Features
  • • ANIX Stainless Steel Threaded Globe Valve GL200
  • • SS 316, Stainless Steel
  • • Full Bore / Full Port
  • • Design according to ASME B16.34
  • • ANSI B1.20.1 Threaded Type (NPT)
  • • Test and Inspection in accordance with API 598
  • • Working Pressure 200psi
  • • Temperature range -20F to 302F
  • • Applicable medium: Water, Oil and Gas.
Picture of ANIX Stainless Steel Socket Weld Ends 3-Piece Ball Valve 1000#

ANIX Stainless Steel Socket Weld Ends 3-Piece Ball Valve 1000#

  • 316 Stainless Steel Socket Weld Ball Valve
  • • Size: 1/4" to 4"
  • Features
  • • S316 SS Socket Weld 3-Piece Ball Valve 1000WOG
  • • Investment Casting Stainless Steel Body
  • • Socket Weld End Connection
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Available in R-PTFE or High-Temp PTFE seat materials
  • • Working Pressure of 1000 Psi
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested and Inspected in accordance with API 598
Picture of ANIX Stainless Steel Socket Weld Ends 3-Piece Ball Valve 1000# with Direct Mount Pad

ANIX Stainless Steel Socket Weld Ends 3-Piece Ball Valve 1000# with Direct Mount Pad

  • 316 Stainless Steel Socket Weld Ball Valve
  • • Size: 1/4" to 4"
  • • High / Direct Mount
  • Features
  • • S316 SS Socket Weld 3-Piece Ball Valve 1000WOG
  • • Investment Casting Stainless Steel Body
  • • Full Port / Full Bore
  • • Socket Weld End Connection - ISO 5211 compliant
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Available in R-PTFE or High-Temp PTFE seat materials
  • • Working Pressure of 1000 Psi
  • • For Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34
  • • Tested and Inspected in accordance with API 598
Picture of ANIX Stainless Steel Swing Check Valve Class 200 Threaded NPT

ANIX Stainless Steel Swing Check Valve Class 200 Threaded NPT

  • SS 316, Stainless Steel, CF8M Swing Check Valve Trim 10
  • • Sizes available: 1/2" to 12"
  • Features
  • • Full Bore / Full Port, Trim 10
  • • Design and manufacture for valve according to ASME B16.34.
  • • Inspection and Test according to API 598 - 2009.
  • • Face to face - ASME B16.10
  • • End Flange connection - ASME B16.5
  • • Temperature Range: -20F to 797F
  • • Applicable medium: Water, Oil, Gas
Picture of ANIX Stainless Steel Y strainer Class 800 Threaded NPT

ANIX Stainless Steel Y strainer Class 800 Threaded NPT

  • 316 Stainless Steel WYE Strainer
  • • Size: 1/4" to 3"
  • Features
  • • 316 SS Stainless Steel Threaded Y- Strainer CL800
  • • Also Known as Wye-Strainer
  • • Stainless Steel, SS 316 Body
  • • Standard screen / basket: Mesh 40
  • • Optional Mesh: 20/40/60/80/100
  • • Design according to ASME B16.34
  • • Test and Inspection in accordance with API 598
  • • Threaded end connection
  • • ASME B1.20.1 (NPT) ISO 7/1 (BSPT, BSP) Threaded Type
  • • Working Pressure 800psi
  • • Temperature range: -20°F to 320°F
  • • Applicable medium: Water, Oil and Gas
Picture of Pneumatic Actuator - Double Acting / Spring Return

Pneumatic Actuator - Double Acting / Spring Return

  • Full Port Floating Ball Valve
  • • Size: 1/2" to 1 1/4" (Solid SS316 Ball, Lever)
  • • Size: 1 1/2" to 8" (Hollow SS316 Ball, Lever)
  • • Size: 6" to 12" (Hollow SS316 Ball, Gear)
  • Features
  • • WCB A216 RFFE 2-PC CS Full Port Ball Valve ANSI 150/300
  • • A216 Cast Carbon Steel Body
  • • Full Port / Full Bore
  • • SS316 Ball & Stem, RPTFE Seat
  • • Flange End Connection according to ASME B16.5
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Graphite Packing
  • • Fire Safe and Anti-static Design with R-PTFE seat materials
  • • ANSI 150 or ANSI 300
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34 and API 607
  • • Tested and inspected in accordance with API 598
Picture of Smart Electric Actuator

Smart Electric Actuator

CSA Approved & Certified
Models: EP20, EP50, EP100, EP200, EP500, EA200, EA500, EPQ115, EPQ215, EPQ315, EPQ415, EPQ425, EPQ515, EPQ525, EPQ535, EPQ545
Super Capacitor/ Fail-Safe Positioning
Models: EP20, EP50, EP100, EP200A, EP200B, EPQ115, EPQ215, EPQ315
Type
(E) Electronic Basic On-Off, (S) Smart On-OFF, (R) R-Modulating
Torque & Travel Time
Torque (in-lb): 89 ~ 7080
Travel Time (S) 0~90°: ≤ 5 ~ 35
Compact & Light Weight
3.086lb ~ 9.039lb
Protection
IP67/ NEMA 4/ NEMA4X/ NEMA6/ NEMA6P/ Weather-proof/ Corrosion Resistant/ Heater
Electric Connection & Bus Type
2 x 1/2NPT Bus Type: Modbus
Voltage
AC/DC24V/ AC110V/ AC220V/ AC110V 3PH/ AC220V 3PH/ AC380 3PH
Optional
Bluetooth Connectivity/ IP68/ 77°F Heater/ C05 Corrosion protection/ Custom Color Coating/ Metal outer hanging unit/ Metal connection panel
Picture of Stainless Steel Hose Tail Barb Nipple CL150 Threaded NPT

Stainless Steel Hose Tail Barb Nipple CL150 Threaded NPT

  • King Combo Nipple / Hosetail / Hose Nipple
    • Picture of ANIX Carbon Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded

    ANIX Carbon Steel 2-Piece Ball Valve 1000# / 2000# NPT Threaded

    • 2-Piece WCB Ball Valve 1000# / 2000#
    • • Sizes available: 1/4" to 4"
    • Features
    • • NPT Threaded End Connection (ANSI B1.20)
    • • Lockable Handle, 316 SS Ball and Stem
    • • Blow-Out-Proof Stem Design
    • • Available in R-PTFE seat material
    • • High-Temp PTFE seat materials can be made available
    • • Working Pressure of 1000 Psi for BV12-5N/1000
    • • Working Pressure of 2000 Psi for BV12-5N/2000
    • • For Water, Oil or Gas Medium Application
    • • Design fully complies with ASME B16.34
    • • Tested in accordance to API 598
    Picture of ANIX Stainless Steel 2-Piece Spring Loaded Check Valve Threaded NPT

    ANIX Stainless Steel 2-Piece Spring Loaded Check Valve Threaded NPT

    • 316 Stainless steel, Size: 1/4" to 2"
    • • Stainless Steel Spring loaded check valve NPT
    • • Stainless Steel SS 316
    • • Working Pressure 600 PSI WOG
    • • Saturated Steam Pressure 125 PSI
    • • Cracking pressure: 3.5 PSI - 5.5 PSI
    • • Design: ASME B16.34
    • • Inspection and Test: API 598
    • • The connection ANSI B1.20.1
    Picture of ANIX Stainless Steel Gate Valve Class 200 Threaded NPT

    ANIX Stainless Steel Gate Valve Class 200 Threaded NPT

    • 316 Stainless Steel Gate Valve
    • • Sizes available: 1/2" to 3"
    • Features
    • • ANIX Stainless Steel Threaded Gate Valve CL200 NPT
    • • Full Bore, Solid disc, Non-rising stem
    • • Design according to ASME B16.34
    • • ANSI B1.20.1 Threaded Type (NPT)
    • • Test and Inspection in accordance with API 598
    • • Working Pressure 200 PSI
    • • Temperature range -20F to 302F
    • • Applicable medium: Water, Oil, and Gas
    Picture of ANIX Lug Butterfly Valve DI

    ANIX Lug Butterfly Valve DI

    • Lug Butterfly Valve
    • • Sizes Available: 2 in ~ 8 in: Lever operate, 8 in ~ 10 in: Gear operate
    • Features
    • • Body Material: Ductile Iron
    • • Coating: Premium Quality with Fusion Bonded Epoxy Coating
    • • Shaft and Stem: SS410 Shaft and Square Stem, Pinless (Without Pin)
    • • Seat Options: EPDM Seat with CF8M (SS316) Disc, Buna (NBR) Seat with NI-DI Disc
    • • Connection: Lug Style Connection Compatible with ANSI CL150 Flange
    • • Maximum Working Pressure: 230 PSI
    • • Temperature Range: -50°F ~ 248°F
    • • Top Flange: ISO 5211
    Picture of ANIX Wafer Butterfly Valve DI

    ANIX Wafer Butterfly Valve DI

    • Wafer Butterfly Valve
    • • Sizes Available: 2 in ~ 8 in: Lever operate, 8 in ~ 10 in: Gear operate
    • Features
    • • Body Material: Ductile Iron
    • • Coating: Premium Quality with Fusion Bonded Epoxy Coating
    • • Shaft and Stem: SS410 Shaft and Square Stem, Pinless (Without Pin)
    • • Seat Options: EPDM Seat with CF8M Disc, Buna (NBR) Seat with NI-DI Disc
    • • Connection: Wafer Style Connection Compatible with ANSI CL150 Flange
    • • Maximum Working Pressure: 230 PSI
    • • Temperature Range: -50°F ~ 248°F
    • • Top Flange: ISO 5211
    Picture of ANIX Stainless Steel 316 Camlock Adapter Type F

    ANIX Stainless Steel 316 Camlock Adapter Type F

    • Stainless Steel 316 Camlock Cam & Groove Adapter Type F
    • • Size: 1/2" to 6"
    • Features
    • • SS Stainless Steel 316 Material
    • • Stainless Steel Cam and Groove Male Adapter x Male NPT Thread
    • • Generally used with Type B couplers
    Picture of ANIX Stainless Steel 316 Camlock Dust Plug Type DP

    ANIX Stainless Steel 316 Camlock Dust Plug Type DP

    • 316 Stainless Steel Dust Plug
    • • Size: 1/2" to 6"
    • Features
    • • Stainless Steel Camlock Dust Plug Type DP
    • • Cam & Groove Dust Plug Type DP
    • • SS 316, Stainless Steel
    • • Superior Quality
    Picture of ANIX Stainless Steel 316 Camlock Coupling Type B

    ANIX Stainless Steel 316 Camlock Coupling Type B

    • ANIX Camlock Coupler
    • • Size: 1/2" to 6"
    • Features
    • • SS 316 Camlock Coupling - Type B Female Coupler with Male NPT Thread
    • • Stainless Steel SS 316 material
    • • Heavy Pattern with superior quality
    • • Generally used with Type F Adapters
    Picture of ANIX Stainless Steel 316 Camlock Coupling Type DC

    ANIX Stainless Steel 316 Camlock Coupling Type DC

    • SS 316 Camlock Coupling Type DC
    • • ANIX Camlock Coupler, Size: 1/2" to 6"
    • Features
    • • Dust Cap with Female End Coupler
    • • Stainless Steel 316 SS material
    • • Durable and superior quality
    • • Not to be used in pressure applications
    Picture of ANIX Stainless Steel 316 Camlock Adapter Type A

    ANIX Stainless Steel 316 Camlock Adapter Type A

    • Stainless Steel Camlock Coupling Type A
    • • Size: 1/2" to 6"
    • Features
    • • Cam & Groove, Male Adaptor with Female NPT Thread.
    • • Stainless Steel, SS 316
    • • 250 Max psi
    • • Mainly for discharge hose and suction application.
    • • Heavy pattern with superior quality.
    Picture of ANIX Stainless Steel 316 Camlock Coupling Type E

    ANIX Stainless Steel 316 Camlock Coupling Type E

    • ANIX Camlock Coupler Type E, Size: 1/2" to 6"
    • • Stainless steel 316 Camlock Cam & Groove Adapter Type E
    • • Stainless Steel 316 SS Material with superior quality
    • • Stainless Steel Cam and Groove Male Adapter x Male NPT Thread
    • • 250 psi working pressure
    • • Normally used with Type C Couplers
    Picture of ANIX Stainless Steel 316 Camlock Coupling Type C

    ANIX Stainless Steel 316 Camlock Coupling Type C

    • 316 Stainless Steel
    • • Size: 1/2" to 6"
    • Features
    • • SS 316 Camlock Coupling Type C Female Couplers with Hose Shank
    • • Stainless Steel 316 SS
    • • 250 Max Pressure
    • • Socket x Barbed connection type
    • • Heavy Pattern with superior quality

    STAINLESS STEEL & CARBON STEEL VALVES MANUFACTURED AND DISTRIBUTED BY ANIX

    - Direct Stocking Manufacturer of Industrial Valves -

    ANIX has been an industrial valve and fittings manufacturer for importers, distributors and OEM customers with private label branding needs since 1988. With our highly experienced Research & Development Team, State of the Art Technology and Warehouse facilities, we guarantee excellent customer support, superior product quality and competitive pricing.

    Here at ANIX, we specialize in the manufacturing of:

    -        Ball, Gate, Globe, Check, Butterfly, Sanitary and Trunnion Valves

    -        Y Strainer, Camlock/Coupling, Pipe fittings

    -        A vast range of valves and fittings made from Stainless Steel, Carbon/Cast Steel.

    ANIX offers custom manufacturing services and solutions to meet your specific design requirements. Our factory is industry leading and board approved, having achieved many internationally recognized certificates.

    ANIX Valve will be your long-term manufacturing and stocking partner for your business needs. We’re excited to work with you and look forward to exceeding your requirements. Please contact [email protected] for more information.



    ====    JOIN US   ====

    CONTACT US FOR DISTRIBUTION PARTNERSHIP OPPORTUNITY.

     Career Opportunities





     ANIX factory



    Company info

    Customer services

    Our Offers

    Powered by nopCommerce
    Designed and Supported by ICT-enable
    Copyright © 2024 ANIX VALVE USA. All rights reserved.
